Recessed Motion Sensors
| Physical Specification | |
|---|---|
| Product Type | Gear |
| Item Group | 23 Control & Dimming |
| Family | Recessed Motion Sensors |
| Order Code | 22008 |
| Material | Plastic |
| Shape | Circular |
| Height | 66mm |
| Diameter | 43mm |
| Cutout Hole Diameter | 33mm |
| Recessed Ceiling | Yes |
| Depth Required | 50mm |
| Indoor | Yes |
| Electrical Characteristics | |
| Input Voltage | 220-240V |
| Power (Watts) | 200W (LED) 800W (Incandescent) |
| Safety Class | Class II |
| Motion | Yes |
| Brightness | Yes |
| Detection Angle | 360° |
| Detection Distance | 6m diameter maximum |
| Time Delay | 10sec ± 3sec to 15min 2 min (adjustable) |
| Installation height | 2,2-4m |
Опис

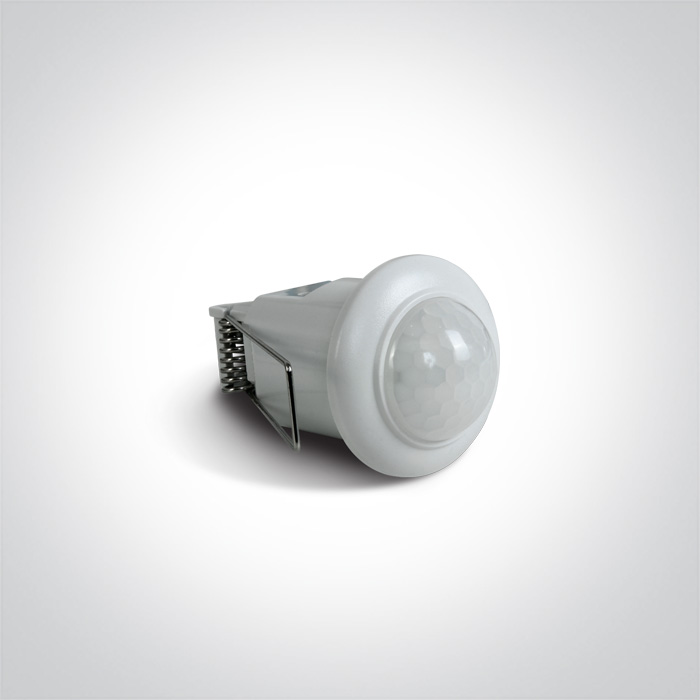

230V 200W (LED) 800W (Incandescent) Recessed Ceiling Infrared Motion Sensor.
Hold time and daylight sensor are adjustable
via dip switches
Complies with standard EN60669 and any other specific
standards.
