Recessed Motion Sensors
| Physical Specification | |
|---|---|
| Product Type | Gear |
| Item Group | 23 Control & Dimming |
| Family | Recessed Motion Sensors |
| Order Code | 22008AB |
| Material | PC |
| Shape | Circular |
| Height | 48mm |
| Diameter | 76mm |
| Cutout Hole Diameter | 64mm |
| Recessed Ceiling | Yes |
| Depth Required | 60mm |
| Indoor | Yes |
| Electrical Characteristics | |
| Input Voltage | 220-240V |
| Power (Watts) | 500W (LED) / 1000W (Incandescent) |
| Safety Class | Class II |
| Motion | Yes |
| Brightness | Yes |
| Detection Angle | 360° |
| Detection Distance | 8m diameter maximum |
| Time Delay | 10sec ±3sec to 30min ±2 min (adjustable) |
| Installation height | 1,8-4m |
Опис

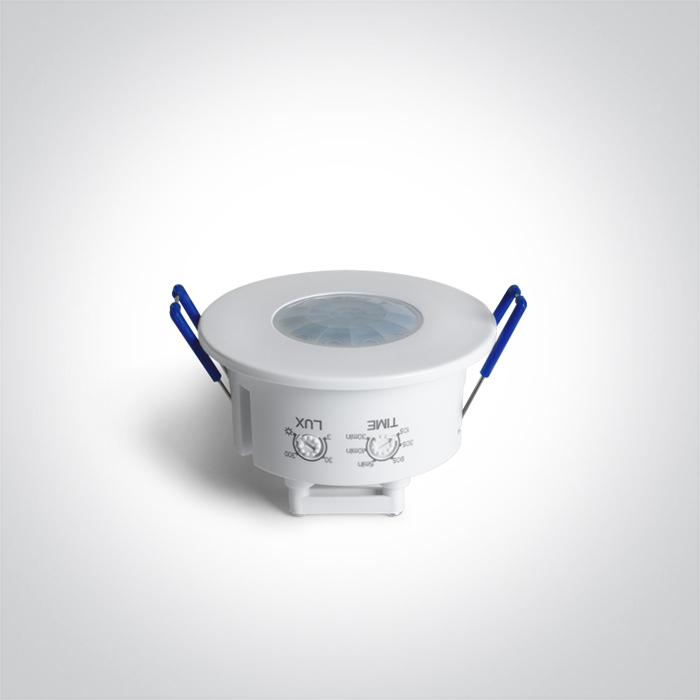

230V 500W (LED) 1000W (Incandescent) Recessed Ceiling Infrared Motion Sensor.
Time delay and daylight sensor are adjustable.
Complies with standard EN60669 and any other specific
standards.
