LED Controllers
| Physical Specification | |
|---|---|
| Product Type | Gear |
| Item Group | 23 Control & Dimming |
| Family | LED Controllers |
| Order Code | 89102L |
| Material | Plastic |
| Shape | Rectangular |
| Length | 95mm |
| Width | 37mm |
| Height | 20mm |
| Indoor | Yes |
| Electrical Characteristics | |
| Gear Type | Led Controller |
| Input Voltage | 220-240V |
| 50 Hz | Yes |
| 60 Hz | Yes |
| Voltage Range | 230V |
| Output | 5A |
| IP Rating | IP20 |
| Safety Class | Class II |
| Dimmable | Yes |
| Housing Material | Plastic |
| Output Terminal | Connector |
Опис

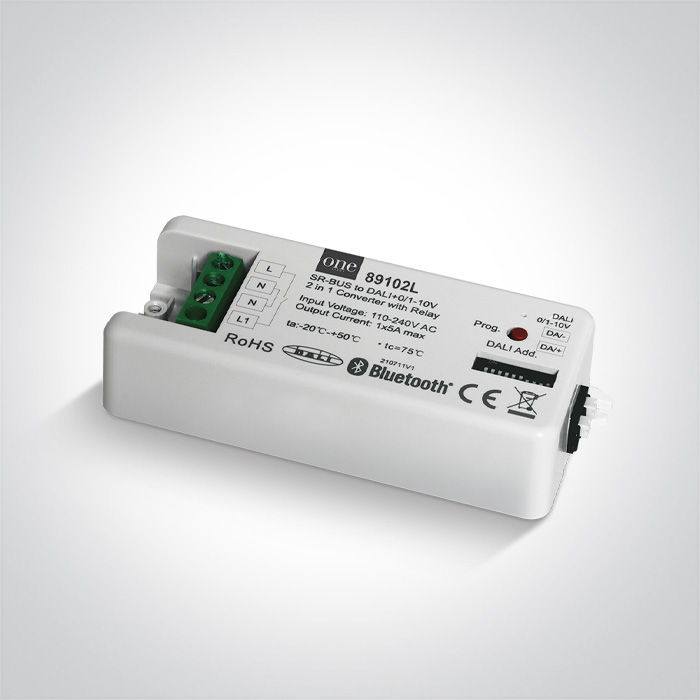

RF + BLUETOOTH to DALI / 1-10v Controller 1 Channel 5A Max 100-240V.
Application EasyThings or HomeeLife.
Can control 1 address (1 DALI control gear) individually, or 1 group, or in broadcast mode up to 12 DALI control gears.
Complies with standard EN61347-1 and any other specific standards.
