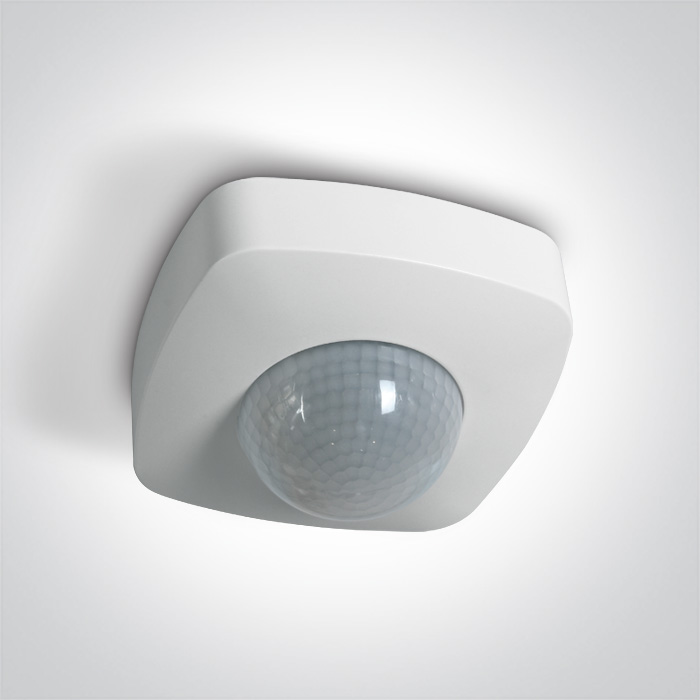

Ceiling-Mounted Motion Sensors
| Physical Specification | |
|---|---|
| Product Type | Gear |
| Item Group | 23 Control & Dimming |
| Family | Ceiling-Mounted Motion Sensors |
| Order Code | 22014 |
| Colour | White |
| Material | Plastic |
| Shape | Rectangular |
| Length | 102mm |
| Width | 102mm |
| Height | 55mm |
| Surface Ceiling | Yes |
| Indoor | Yes |
| Electrical Characteristics | |
| Input Voltage | 220-240V |
| Power (Watts) | 1000W(LED) 2000W(Incadescent) |
| Safety Class | Class II |
| Motion | Yes |
| Brightness | Yes |
| Detection Angle | 360° |
| Detection Distance | 20m diameter maximum |
| Time Delay | 10sec ± 3sec to 30min 2 min (adjustable) |
| Installation height | 2,2-6m |
Опис
230V 1000W(LED) 2000W(Incadescent) Ceiling Infrared Presence Sensor.
Hold time and daylight sensor are adjustable
via rotary switches
Complies with standard EN60669 and any other specific
standards.
