UGR19 CCT V Office Range Square
| Physical Specification | |
|---|---|
| Product Type | Gear |
| Item Group | 05 Downlights Fixed |
| Family | UGR19 CCT V Office Range Square |
| Order Code | 50125UV/W/V |
| Colour | White |
| Material | Die Cast |
| Shape | Rectangular |
| Length | 175mm |
| Width | 175mm |
| Height | 35mm |
| Cutout Hole Width | 160mm |
| Cutout Hole Height | 160mm |
| Recessed Ceiling | Yes |
| Depth Required | 70mm |
| Indoor | Yes |
| Adjustable | No |
| Electrical Characteristics | |
| Gear | External-Included |
| Input Voltage | 220-240V |
| 50 Hz | Yes |
| 60 Hz | Yes |
| Safety Class | Class II |
| Power (Watts) | 25W |
| IP Rating | IP44 |
| Light Source | LED built in |
| Dimmable | No |
| F Mark | Yes |
| Input Type | Constant Current |
| Input Current | 600mA |
| Safety Class | Class III |
| IP Rating | IP44 |
| Light Source | LED built in |
| LED Type | SMD 2835 |
| F Mark | Yes |
| Gear Type | Led Driver |
| Input Voltage | 220-240V |
| 50 Hz | Yes |
| 60 Hz | Yes |
| Power Factor | 0,9 |
| Constant Current | Yes |
| IP Rating | IP44 |
| Safety Class | Class II |
| Dimmable | No |
Опис

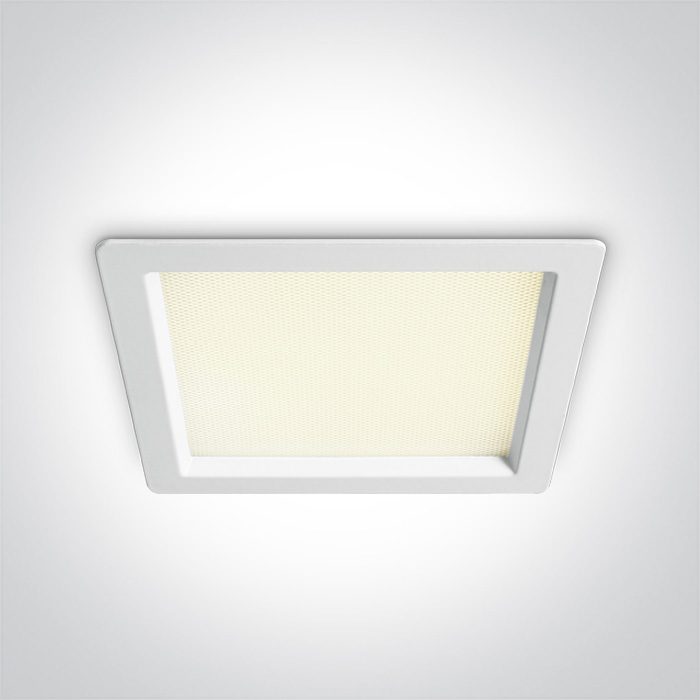

25W SMD LED UGR19 downlight with adjustable CCT, IP44.
Complete with non-dimmable driver.
Complies with standard EN60598-1 and any other specific
standards.
