The Dark Light Project Range
| Physical Specification | |
|---|---|
| Product Type | Gear |
| Item Group | 05 Downlights Fixed |
| Family | The Dark Light Project Range |
| Order Code | 10110TD/W/C |
| Colour | White |
| Material | Aluminium |
| Shape | Circular |
| Height | 67mm |
| Diameter | 115mm |
| Cutout Hole Diameter | 95mm |
| Recessed Ceiling | Yes |
| Depth Required | 110mm |
| Indoor | Yes |
| Outdoor | Yes |
| Adjustable | No |
| Electrical Characteristics | |
| Gear | External-Included |
| Input Voltage | 220-240V |
| 50 Hz | Yes |
| 60 Hz | Yes |
| Safety Class | Class II |
| Power (Watts) | 10W |
| IP Rating | IP54 |
| Light Source | LED built in |
| Dimmable | No |
| F Mark | Yes |
| Input Type | Constant Current |
| Input Current | 250mA |
| Voltage | 39V |
| Safety Class | Class III |
| Power (Watts) | 9W |
| IP Rating | IP54 |
| Light Source | LED built in |
| LED Type | SMD 2835 |
| LED Brand | Epistar |
| F Mark | Yes |
| Gear Type | Led Driver |
| Input Voltage | 220-240V |
| 50 Hz | Yes |
| 60 Hz | Yes |
| Power (Watts) | 7-9,2W |
| Power Factor | 0,9 |
| Constant Current | Yes |
| Voltage Range | 30-40V |
| Output | 250mA |
| IP Rating | IP20 |
| Safety Class | Class II |
| Dimmable | No |
| Housing Material | Plastic |
| Output Terminal | Cable |
Опис

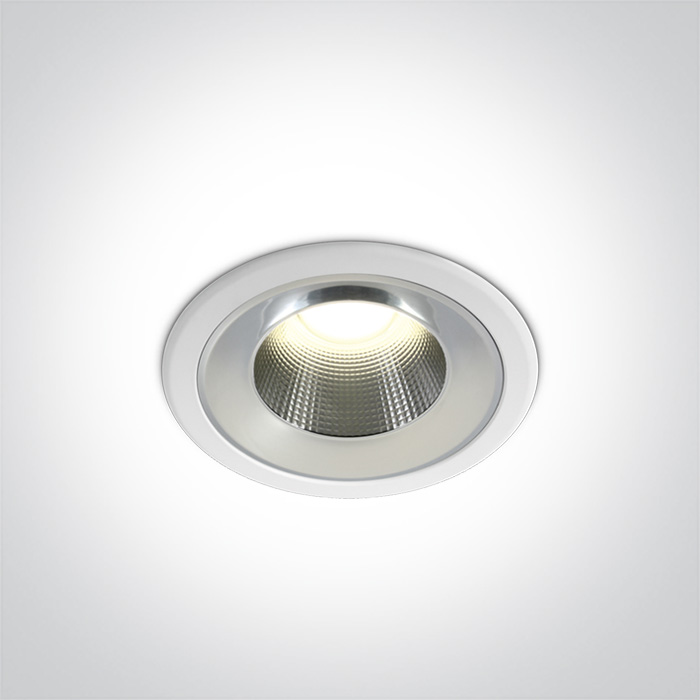

10W LED recessed downlight, IP54. Suitable for Indoor/Outdoor
installation.
Complete with 250mA driver.
Complies with standard EN60598-1 and any other specific standards.
