UGR19 Backlit Panels
| Physical Specification | |
|---|---|
| Product Type | Gear |
| Item Group | 10 Office & Kitchen |
| Family | UGR19 Backlit Panels |
| Order Code | 62150BFU/W/V |
| Colour | White |
| Material | Aluminium + Steel |
| Shape | Rectangular |
| Length | 1500mm |
| Width | 150mm |
| Height | 42mm |
| Surface Ceiling | Yes |
| Indoor | Yes |
| Adjustable | No |
| Electrical Characteristics | |
| Gear | Built In |
| Input Voltage | 220-240V |
| 50 Hz | Yes |
| 60 Hz | Yes |
| Safety Class | Class II |
| Power (Watts) | 40W |
| IP Rating | IP20 |
| Light Source | LED built in |
| Dimmable | No |
| F Mark | Yes |
| Input Type | Constant Current |
| Input Current | 1000mA |
| Voltage | 38V |
| Power (Watts) | 38W |
| IP Rating | IP20 |
| Light Source | LED built in |
| LED Type | SMD 2835 |
| LED Brand | Sanan |
| F Mark | Yes |
| Gear Type | Led Driver |
| Input Voltage | 220-240V |
| 50 Hz | Yes |
| 60 Hz | Yes |
| Power (Watts) | 25W-38W |
| Power Factor | 0,9 |
| Constant Current | Yes |
| IP Rating | IP20 |
| Dimmable | No |
Опис

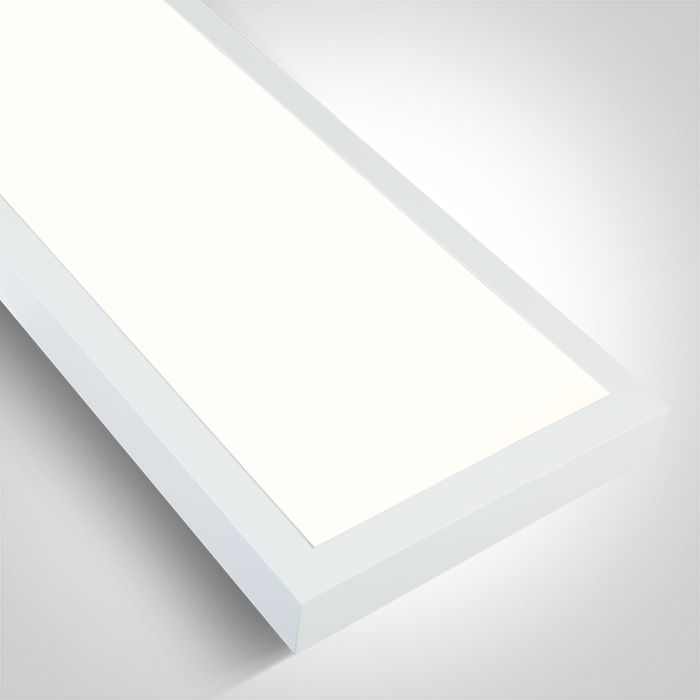

15x150cm adjustable CCT surface mounted backlit LED panel with microprismatic diffuser.
Uniform lighting, ideal for commercial applications.
Complete with 1000mA driver.
Complies with standard EN60598-1 and any other specific standards.
