Opal Recessed LED Linear Profiles
| Physical Specification | |
|---|---|
| Product Type | Gear |
| Item Group | 10 Office & Kitchen |
| Family | Opal Recessed LED Linear Profiles |
| Order Code | 38152RC/W/C |
| Colour | White |
| Material | Aluminium |
| Diffuser Material | Plastic |
| Shape | Rectangular |
| Length | 164x164mm |
| Width | 70mm |
| Height | 60mm |
| Cutout Hole Width | 160x160mm |
| Cutout Hole Height | 60mm |
| Recessed Ceiling | Yes |
| Depth Required | 80mm |
| Indoor | Yes |
| Adjustable | No |
| Electrical Characteristics | |
| Gear | Built In |
| Input Voltage | 220-240V |
| 50 Hz | Yes |
| 60 Hz | Yes |
| Safety Class | Class I |
| Power (Watts) | 8W |
| IP Rating | IP20 |
| Light Source | LED built in |
| Dimmable | No |
| F Mark | Yes |
| Input Type | Constant Current |
| Input Current | 200mA |
| Voltage | 34V |
| Power (Watts) | 6,8W |
| IP Rating | IP20 |
| Light Source | LED built in |
| LED Type | SMD 2835 |
| LED Brand | Epistar |
| LED Number | 60 |
| Gear Type | Led Driver |
| Input Voltage | 220-240V |
| 50 Hz | Yes |
| 60 Hz | Yes |
| Power (Watts) | 5,6-8W |
| Power Factor | 0,9 |
| Constant Current | Yes |
| IP Rating | IP20 |
| Safety Class | Class I |
| Dimmable | No |
| Housing Material | Metal |
| Output Terminal | Connector |
Опис

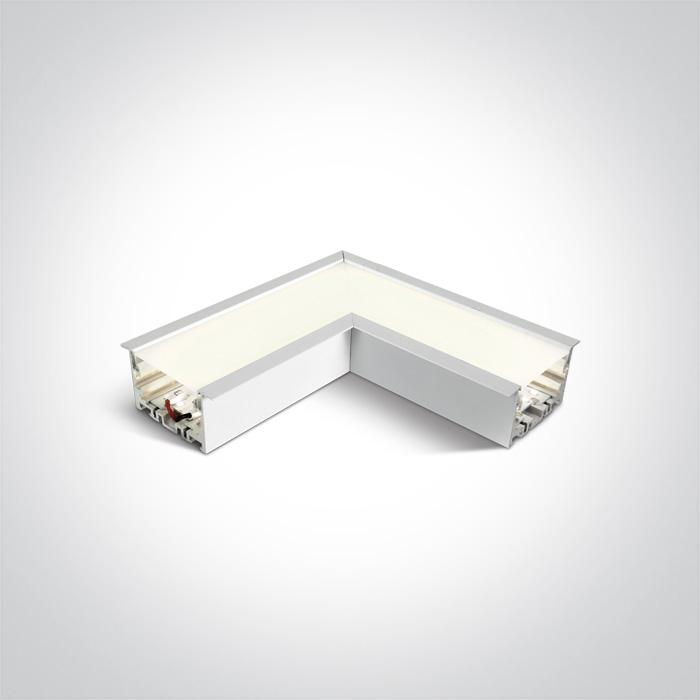

8W corner for 38152R.
Complete with 200mA driver , 4pcs fixing clips, 4pcs connectors & 2pcs end cups.
Complies with standard EN60598-1 and any other specific standards.
