Trimless Dark Light Tubes
| Physical Specification | |
|---|---|
| Product Type | Gear |
| Item Group | 02 Recessed Spots Fixed LED |
| Family | Trimless Dark Light Tubes |
| Order Code | 50103ATR/B/W |
| Colour | Black |
| Material | Die Cast |
| Shape | Rectangular |
| Length | 34mm |
| Width | 34mm |
| Height | 52mm |
| Cutout Hole Width | 50mm |
| Cutout Hole Height | 38mm |
| Recessed trimmless ceiling | Yes |
| Depth Required | 70mm |
| Indoor | Yes |
| Adjustable | No |
| Electrical Characteristics | |
| Gear | External-Included |
| Input Voltage | 220-240V |
| 50 Hz | Yes |
| 60 Hz | Yes |
| Safety Class | Class II |
| Power (Watts) | 3W |
| IP Rating | IP20 |
| Light Source | LED built in |
| Dimmable | No |
| F Mark | Yes |
| Input Type | Constant Current |
| Input Current | 700mA |
| Voltage | 4V |
| Safety Class | Class III |
| Power (Watts) | 2,8W |
| IP Rating | IP20 |
| Light Source | LED built in |
| LED Type | SMD 3535 |
| LED Brand | Cree |
| LED Number | 1 |
| F Mark | Yes |
| Gear Type | Led Driver |
| Input Voltage | 220-240V |
| 50 Hz | Yes |
| 60 Hz | Yes |
| Power (Watts) | 1,4-2,8W |
| Power Factor | 0,5 |
| Constant Current | Yes |
| IP Rating | IP20 |
| Safety Class | Class II |
| Dimmable | No |
| Ambient Temp | 50°C |
| Operating Temp | 85°C |
| Housing Material | Plastic |
| Output Terminal | Cable |
Опис

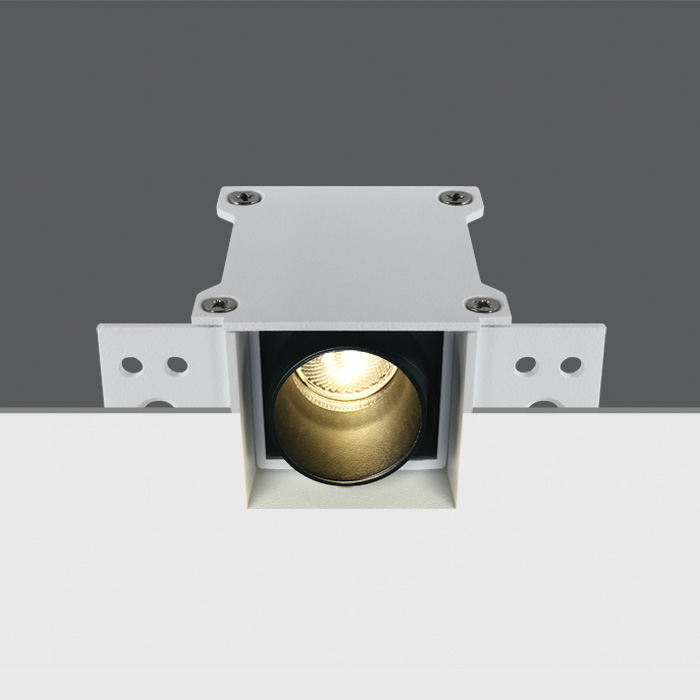

3W SMD LED recessed spot trimless, IP20.
Complete with 700mA driver.
Complies with standard EN60598-1 and any other specific standards.
