The Trimless Mirror Range Aluminium
| Physical Specification | |
|---|---|
| Product Type | Gear |
| Item Group | 02 Recessed Spots Fixed LED |
| Family | The Trimless Mirror Range Aluminium |
| Order Code | 10106XTR/W/W |
| Colour | White |
| Material | Aluminium |
| Shape | Circular |
| Height | 48mm |
| Diameter | 78mm |
| Cutout Hole Diameter | 78mm |
| Recessed trimmless ceiling | Yes |
| Depth Required | 70mm |
| Indoor | Yes |
| Adjustable | No |
| Electrical Characteristics | |
| Gear | Built In |
| Input Voltage | 220-240V |
| 50 Hz | Yes |
| 60 Hz | Yes |
| Safety Class | Class I |
| Power (Watts) | 6W |
| IP Rating | IP20 |
| Light Source | LED built in |
| Dimmable | No |
| Input Type | Constant Current |
| Input Current | 150mA |
| Voltage | 36V |
| Safety Class | Class III |
| Power (Watts) | 5,4W |
| IP Rating | IP20 |
| Light Source | LED built in |
| LED Type | SMD 3030 |
| LED Brand | Sanan |
| LED Number | 6 |
| F Mark | Yes |
| Gear Type | Led Driver |
| Input Voltage | 220-240V |
| 50 Hz | Yes |
| 60 Hz | Yes |
| Power (Watts) | 4,2-6,3W |
| Power Factor | 0,5 |
| Constant Current | Yes |
| IP Rating | IP20 |
| Safety Class | Class II |
| Dimmable | No |
| Ambient Temp | -20°C…+60°C |
| Operating Temp | 85°C |
Опис

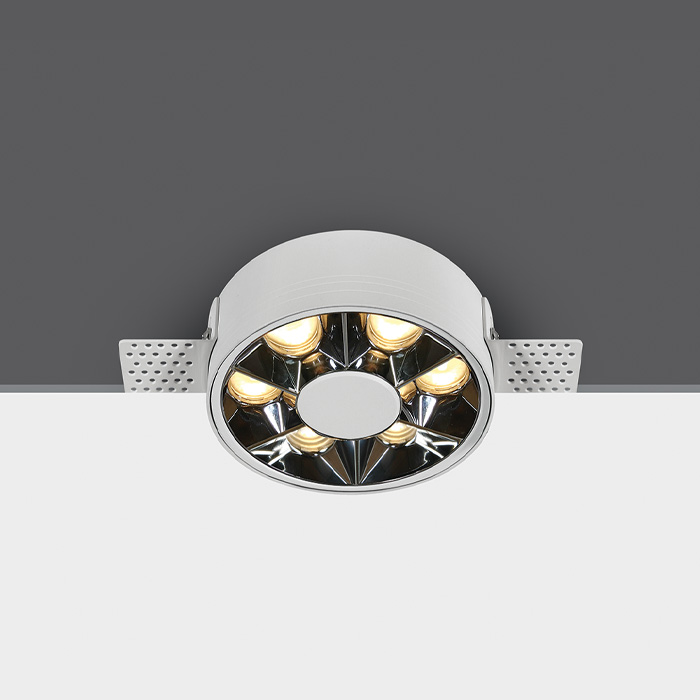

6W Trimless Recessed spot, IP20.
Complete with 150mA driver.
Complies with standard EN60598-1 and any other specific standards.
