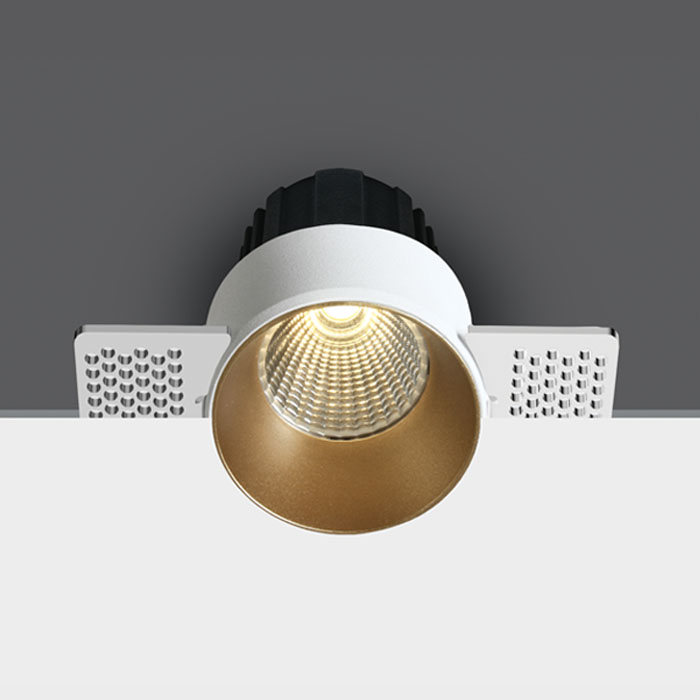

The Trimless 12W Range Aluminium
| Physical Specification | |
|---|---|
| Product Type | Gear |
| Item Group | 02 Recessed Spots Fixed LED |
| Family | The Trimless 12W Range Aluminium |
| Order Code | 10112BTR/BS/V |
| Colour | Brass |
| Material | Aluminium |
| Shape | Circular |
| Height | 85mm |
| Diameter | 64mm |
| Cutout Hole Diameter | 70mm |
| Recessed trimmless ceiling | Yes |
| Depth Required | 100mm |
| Indoor | Yes |
| Adjustable | No |
| Electrical Characteristics | |
| Gear | Order Separately |
| Input Type | Constant Current |
| Input Current | 700mA |
| Safety Class | Class III |
| Power (Watts) | 12W |
| IP Rating | IP20 |
| Light Source | LED built in |
| LED Type | COB |
| Cable Length | 40cm |
| Fast Connector | One Light 700 |
| F Mark | Yes |
Опис
12W CCT Variable COB LED 2-Step Trimless Recessed spot, IP20.
Requires 700mA constant current driver.
Complies with standard EN60598-1 and any other specific standards.
