The LED Decorative Range
| Physical Specification | |
|---|---|
| Product Type | Gear |
| Item Group | 02 Recessed Spots Fixed LED |
| Family | The LED Decorative Range |
| Order Code | 10108J/W/W |
| Colour | White |
| Material | Die Cast |
| Shape | Circular |
| Height | 62mm |
| Diameter | 90mm |
| Cutout Hole Diameter | 70mm |
| Recessed Ceiling | Yes |
| Depth Required | 100mm |
| Indoor | Yes |
| Adjustable | No |
| Electrical Characteristics | |
| Gear | External-Included |
| Input Voltage | 220-240V |
| 50 Hz | Yes |
| 60 Hz | Yes |
| Safety Class | Class II |
| Power (Watts) | 8W |
| IP Rating | IP40 |
| Light Source | LED built in |
| Dimmable | No |
| F Mark | Yes |
| Input Type | Constant Current |
| Input Current | 200mA |
| Voltage | 34,3V |
| Safety Class | Class III |
| Power (Watts) | 6,86W |
| IP Rating | IP40 |
| Light Source | LED built in |
| LED Type | COB+SMD 4014 |
| LED Brand | Citizen |
| Gear Type | Led Driver |
| Input Voltage | 220-240V |
| 50 Hz | Yes |
| 60 Hz | Yes |
| Power (Watts) | 6-8W |
| Power Factor | 0,9 |
| Constant Current | Yes |
| IP Rating | IP20 |
| Safety Class | Class II |
| Ambient Temp | 45°C |
| Operating Temp | 90°C |
| Housing Material | Plastic |
| Output Terminal | Cable |
Опис

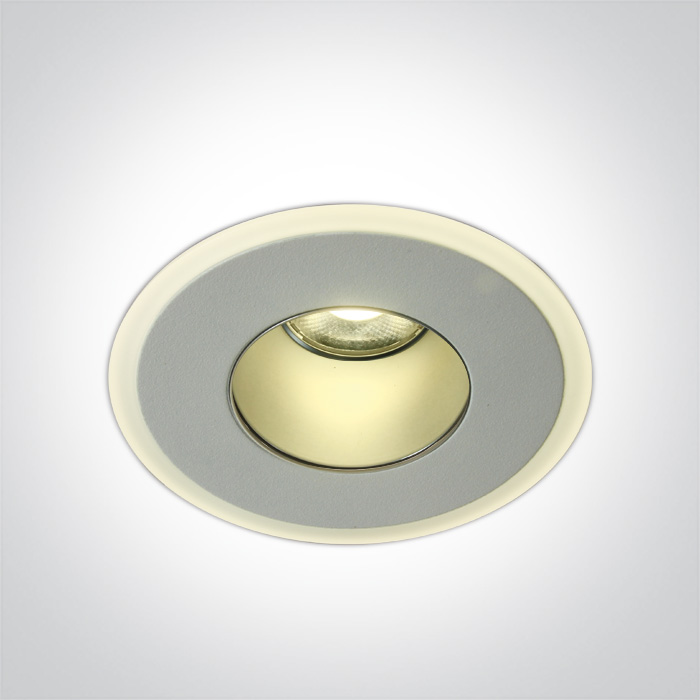

8W COB + SMD LED Dark light recessed spot.
Complete with 200mA driver.
Complies with standard EN60598-1 and any other specific standards.
