    The TRIAC Dimmable Range Adjustable constant current

    Physical Specification
    Product Type Gear
    Item Group 22 Drivers
    Family The TRIAC Dimmable Range Adjustable constant current
    Order Code 89016UT
    Material Plastic
    Shape Rectangular
    Length 122mm
    Width 41mm
    Height 23mm
    Indoor Yes
    Electrical Characteristics
    Gear Type Led Driver
    Input Voltage 220-240V
    50 Hz Yes
    60 Hz Yes
    Power (Watts) Refer to Table
    Power Factor >0,9
    Constant Current Yes
    IP Rating IP20
    Safety Class Class II
    Dimmable Yes
    Dimmer type Triac
    Ambient Temp 50ºC
    Operating Temp 85ºC
    Housing Material Plastic
    Output Terminal Cable
    Артикул: 89016UT Категорія:

    Опис

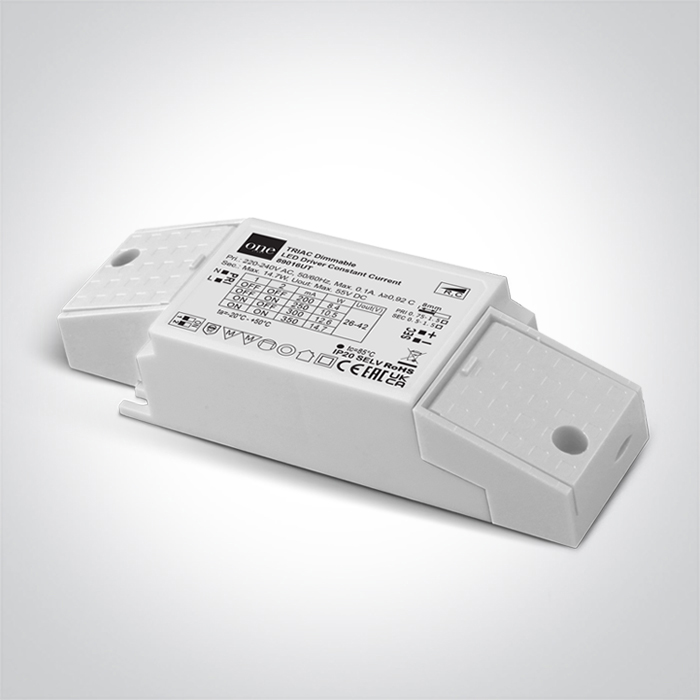

    Constant current dimmable LED driver for 200/250/300/350mA LED spots / LED fittings.

    Complies with standard EN61347-1 and any other specific standards.
