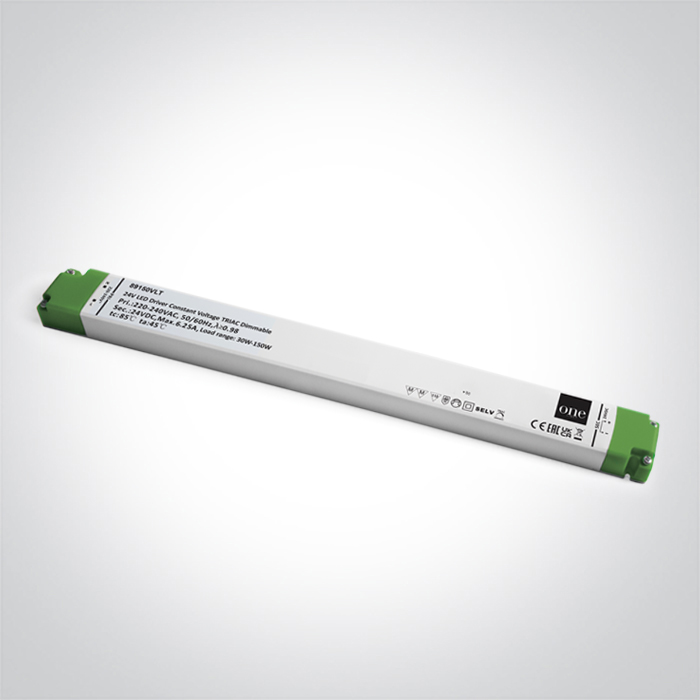

    The 24V DC Slim Range TRIAC Dimmable

    Physical Specification
    Product Type Gear
    Item Group 22 Drivers
    Family The 24V DC Slim Range TRIAC Dimmable
    Order Code 89150VLT
    Material Plastic
    Shape Rectangular
    Length 357mm
    Width 32mm
    Height 23mm
    Indoor Yes
    Electrical Characteristics
    Gear Type Led Driver
    Input Voltage 220-240V
    50 Hz Yes
    60 Hz Yes
    Power (Watts) 30-150W
    Power Factor 0,98
    Constant Voltage Yes
    24 V Yes
    IP Rating IP20
    Safety Class Class II
    Dimmable Yes
    Dimmer type Triac
    Ambient Temp 45ºC
    Operating Temp 90ºC
    Housing Material Plastic
    Output Terminal Connector
    Артикул: 89150VLT Категорія:

    Опис

    30-150W 24V DC TRIAC dimmable constant voltage driver, IP20.

    Complies with standard EN61347-1 and any other specific standards.
