The Fire Rated IP65 Range
| Physical Specification | |
|---|---|
| Product Type | Gear |
| Item Group | 02 Recessed Spots Fixed LED |
| Family | The Fire Rated IP65 Range |
| Order Code | 10107DFV/W/V |
| Colour | White |
| Material | Metal |
| Shape | Circular |
| Height | 65mm |
| Diameter | 88mm |
| Cutout Hole Diameter | 65mm |
| Recessed Ceiling | Yes |
| Depth Required | 80mm |
| Indoor | Yes |
| Outdoor | Yes |
| Adjustable | No |
| Electrical Characteristics | |
| Gear | Built In |
| Input Voltage | 220-240V |
| 50 Hz | Yes |
| 60 Hz | Yes |
| Safety Class | Class II |
| Power (Watts) | 7W |
| IP Rating | IP65 |
| Light Source | LED built in |
| Dimmable | Yes |
| Dimmer type | Triac |
| F Mark | Yes |
| Input Type | Constant Current |
| Power (Watts) | 7W |
| IP Rating | IP65 |
| Light Source | LED built in |
| LED Type | SMD |
| F Mark | Yes |
| Gear Type | Led Driver |
| Input Voltage | 220-240V |
| 50 Hz | Yes |
| 60 Hz | Yes |
| IP Rating | IP20 |
| Safety Class | Class II |
| Output Terminal | Connector |
Опис

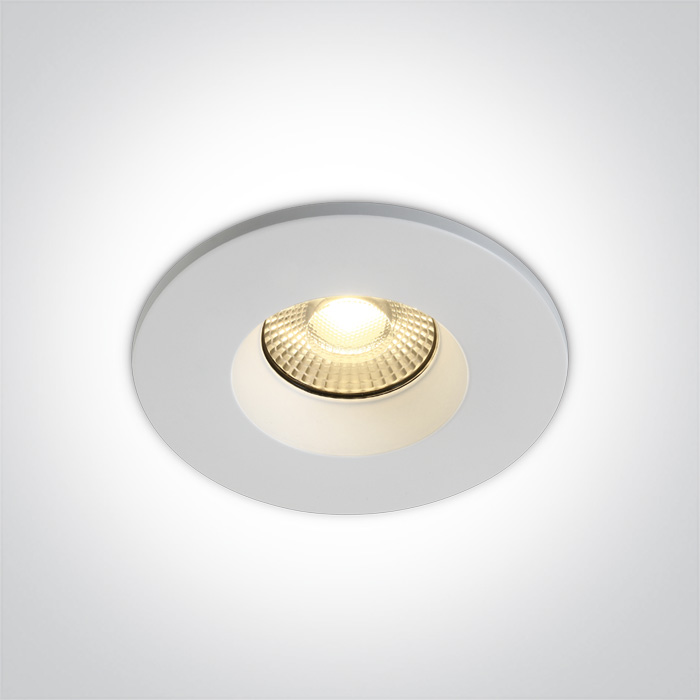

7W COB LED Fire Rated 90 minutes recessed Spot, IP65 with variable CCT, 2700K-3000K-4000K.
Supplied with Triac dimmable LED driver.
Complete with white ring.
Complies with standard EN60598-1 and any other specific
standards.
