The COB Recessed Cylinders
| Physical Specification | |
|---|---|
| Product Type | Gear |
| Item Group | 04 Recessed Spots Adjustable LED |
| Family | The COB Recessed Cylinders |
| Order Code | 51111C/B/W |
| Colour | Black |
| Material | Die Cast |
| Shape | Rectangular |
| Length | 90mm |
| Width | 90mm |
| Height | 98mm |
| Cutout Hole Width | 85mm |
| Cutout Hole Height | 85mm |
| Recessed Ceiling | Yes |
| Depth Required | 110mm |
| Indoor | Yes |
| Adjustable | 2 Directions |
| Electrical Characteristics | |
| Gear | External-Included |
| Input Voltage | 220-240V |
| 50 Hz | Yes |
| 60 Hz | Yes |
| Safety Class | Class II |
| Power (Watts) | 11W |
| IP Rating | IP20 |
| Light Source | LED built in |
| Dimmable | No |
| F Mark | Yes |
| Input Type | Constant Current |
| Input Current | 250mA |
| Voltage | 37V |
| Safety Class | Class III |
| Power (Watts) | 9,25W |
| IP Rating | IP20 |
| Light Source | LED built in |
| LED Type | COB |
| LED Brand | Luminus |
| LED Number | 1 |
| F Mark | Yes |
| Gear Type | Led Driver |
| Input Voltage | 220-240V |
| 50 Hz | Yes |
| 60 Hz | Yes |
| Power (Watts) | 7,5-12W |
| Power Factor | 0,5 |
| Constant Current | Yes |
| IP Rating | IP20 |
| Safety Class | Class II |
| Dimmable | No |
| Housing Material | Plastic |
| Output Terminal | Cable |
Опис

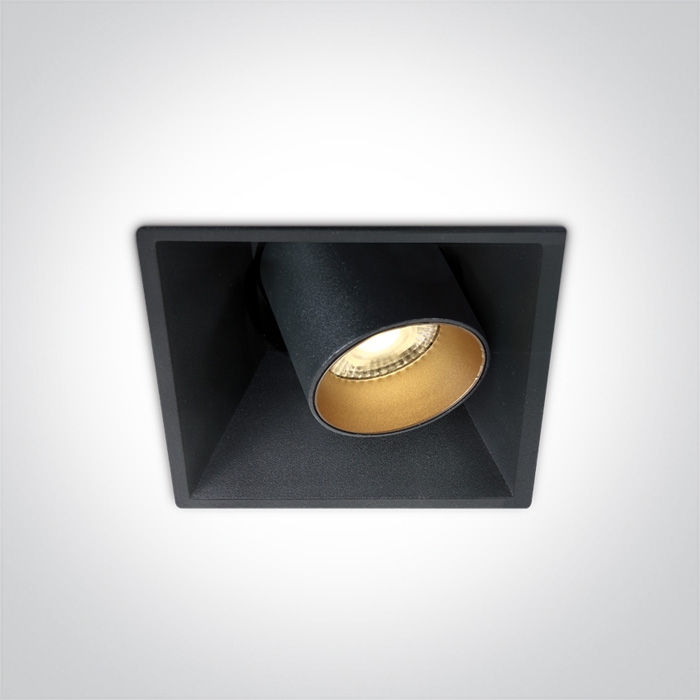

11W COB LED recessed adjustable spot, for general lighting
applications.
Supplied with Black & Brass reflectors.
Complete with 250mA driver.
Complies with standard EN60598-1 and any other specific
standards.
