The 7W/8W Range
| Physical Specification | |
|---|---|
| Product Type | Gear |
| Item Group | 02 Recessed Spots Fixed LED |
| Family | The 7W/8W Range |
| Order Code | 10108D1/W/W |
| Colour | White |
| Material | Die Cast |
| Shape | Circular |
| Height | 85mm |
| Diameter | 88mm |
| Cutout Hole Diameter | 73mm |
| Recessed Ceiling | Yes |
| Depth Required | 105mm |
| Indoor | Yes |
| Adjustable | No |
| Electrical Characteristics | |
| Gear | External-Included |
| Input Voltage | 220-240V |
| 50 Hz | Yes |
| 60 Hz | Yes |
| Safety Class | Class II |
| Power (Watts) | 8W |
| IP Rating | IP20 |
| Light Source | LED built in |
| Dimmable | No |
| F Mark | Yes |
| Input Type | Constant Current |
| Input Current | 300mA |
| Voltage | 24V |
| Safety Class | Class III |
| Power (Watts) | 7,2W |
| IP Rating | IP20 |
| Light Source | LED built in |
| LED Type | COB |
| LED Brand | Sanan |
| F Mark | Yes |
| Gear Type | Led Driver |
| Input Voltage | 220-240V |
| 50 Hz | Yes |
| 60 Hz | Yes |
| Power (Watts) | 8,75-15,2W |
| Power Factor | 0,9 |
| Constant Current | Yes |
| IP Rating | IP20 |
| Safety Class | Class II |
| Dimmable | No |
| Housing Material | Plastic |
| Output Terminal | Cable |
Опис

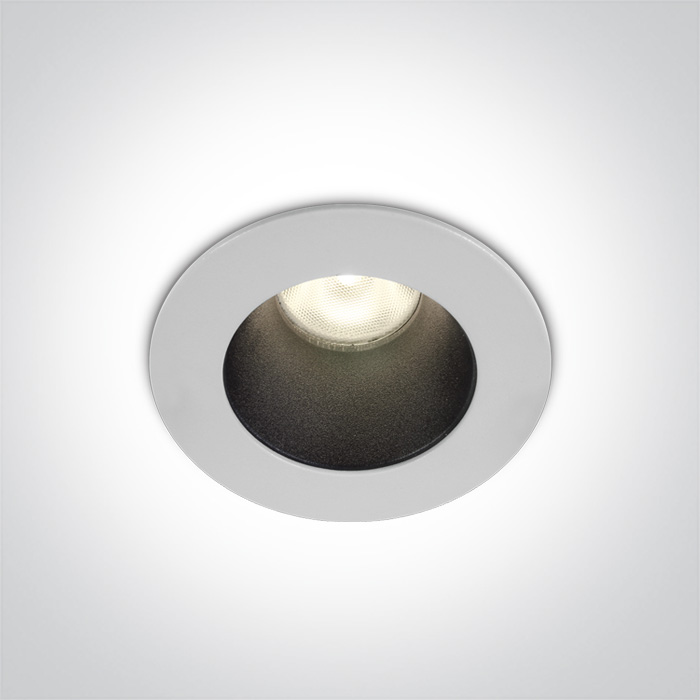

8W COB LED Dark light recessed Spot.
Supplied with non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific
standards.
