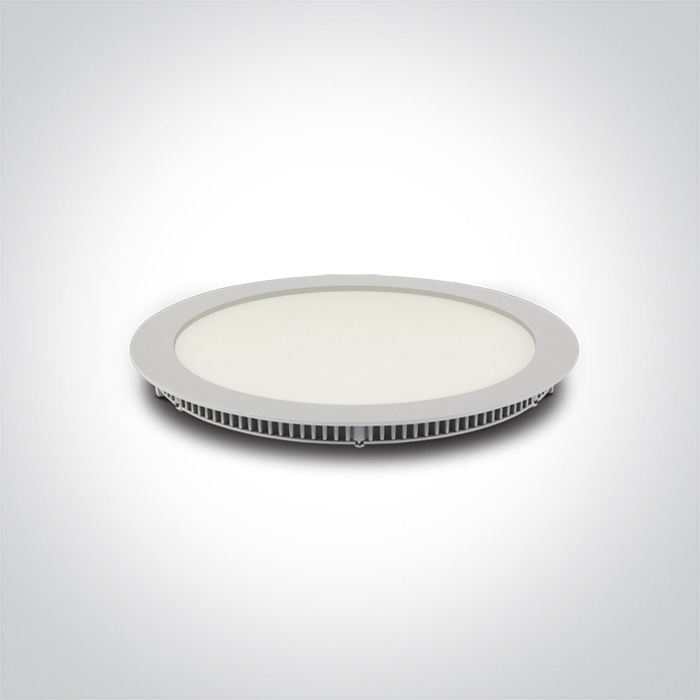

The 18-30W Round Recessed Panels Aluminium
| Physical Specification | |
|---|---|
| Product Type | Gear |
| Item Group | 05 Downlights Fixed |
| Family | The 18-30W Round Recessed Panels Aluminium |
| Order Code | 10130FA/W/W |
| Colour | White |
| Material | Die Cast |
| Diffuser Material | Acrylic |
| Shape | Circular |
| Height | 22mm |
| Diameter | 295mm |
| Cutout Hole Diameter | 285mm |
| Recessed Ceiling | Yes |
| Depth Required | 50mm |
| Indoor | Yes |
| Adjustable | No |
| Electrical Characteristics | |
| Gear | External-Included |
| Input Voltage | 220-240V |
| 50 Hz | Yes |
| 60 Hz | Yes |
| Safety Class | Class II |
| Power (Watts) | 30W |
| IP Rating | IP40 |
| Light Source | LED built in |
| Dimmable | No |
| F Mark | Yes |
| Input Type | Constant Current |
| Input Current | 700mA |
| Voltage | 34,7V |
| Safety Class | Class III |
| Power (Watts) | 24,3W |
| IP Rating | IP40 |
| Light Source | LED built in |
| LED Type | SMD 2835 |
| LED Brand | Epistar |
| LED Number | 144 |
| Gear Type | Led Driver |
| Input Voltage | 220-240V |
| 50 Hz | Yes |
| 60 Hz | Yes |
| Power (Watts) | 30W |
| Power Factor | 0,9 |
| Constant Current | Yes |
| IP Rating | IP20 |
| Safety Class | Class II |
| Dimmable | No |
| Ambient Temp | 50°C |
| Operating Temp | 75°C |
| Housing Material | Plastic |
Опис
30W slim downlight LED, IP40, ideal for commercial
applications such as offices, galleries and showrooms.
Complete with 700mA non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific
standards.
