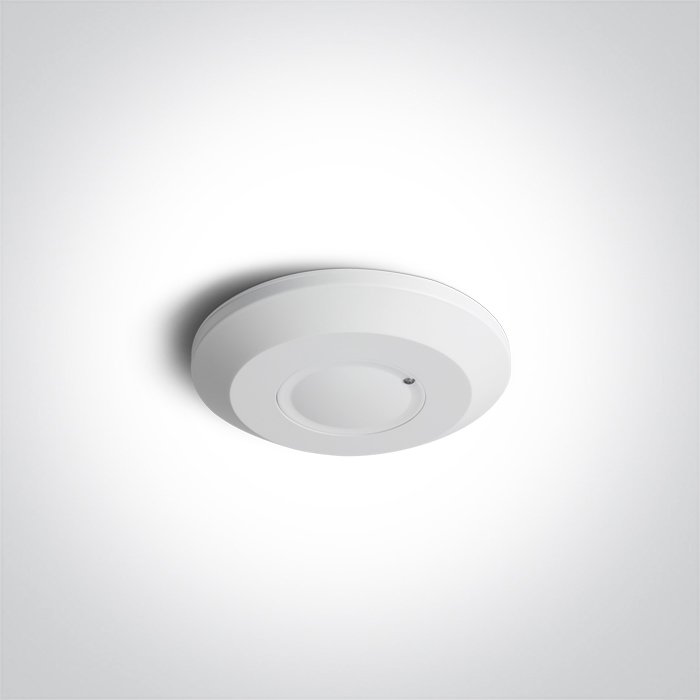

Ceiling-Mounted Motion Sensors
| Physical Specification | |
|---|---|
| Product Type | Gear |
| Item Group | 23 Control & Dimming |
| Family | Ceiling-Mounted Motion Sensors |
| Order Code | 22004M |
| Material | PC |
| Shape | Circular |
| Height | 24mm |
| Diameter | 102mm |
| Surface Ceiling | Yes |
| Indoor | Yes |
| Electrical Characteristics | |
| Input Voltage | 220-240V |
| Power (Watts) | 250W (LED) / 500W (Incandescent) |
| Safety Class | Class II |
| Motion | Yes |
| Brightness | Yes |
| Detection Angle | 360° |
| Detection Distance | 16m maximum diameter (adjustable) |
| Time Delay | 10sec ± 3sec to 12min ± 1min (adjustable) |
| Installation height | 2-6m |
Опис
230V 250W (LED) 500W (Incandescent) Surface mounted microwave motion sensor.
Time delay, daylight sensor and detection distance are adjustable.
Complies with standard EN60669 and any other specific
standards.
