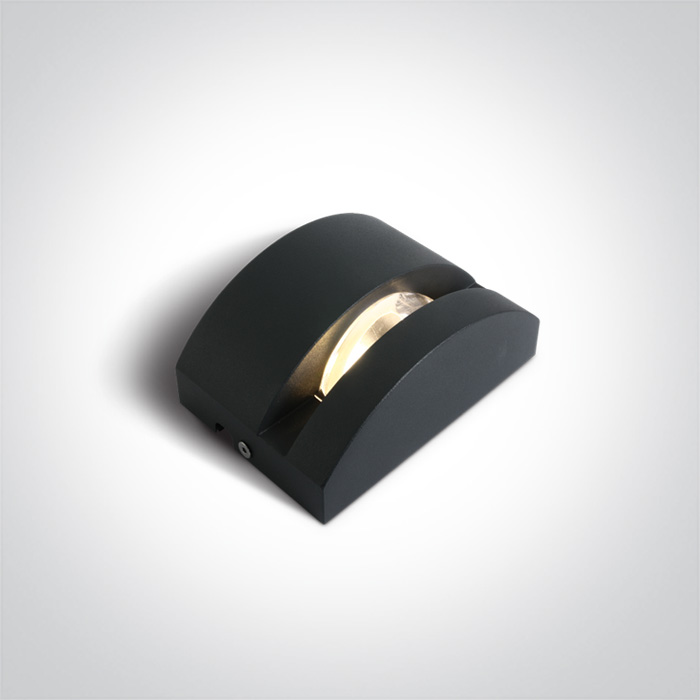

Window Frame Illumination
| Physical Specification | |
|---|---|
| Product Type | Gear |
| Item Group | 12 Wall & Ceiling LED |
| Family | Window Frame Illumination |
| Order Code | 67454/AN/W |
| Colour | Anthracite |
| Material | Die Cast |
| Shape | Rectangular |
| Length | 140mm |
| Width | 95mm |
| Height | 62mm |
| Surface Ceiling | Yes |
| Surface Wall | Yes |
| Surface Floor/Ground | Yes |
| Indoor | Yes |
| Outdoor | Yes |
| IK Rating | 8 |
| Electrical Characteristics | |
| Gear | Built In |
| Input Voltage | 100-240V |
| 50 Hz | Yes |
| 60 Hz | Yes |
| Safety Class | Class I |
| Power (Watts) | 6W |
| IP Rating | IP65 |
| Light Source | LED built in |
| Dimmable | No |
| F Mark | Yes |
| Input Type | Constant Current |
| Input Current | 500mA |
| Voltage | 11V |
| Power (Watts) | 5,5W |
| IP Rating | IP65 |
| Light Source | LED built in |
| LED Type | COB |
| LED Brand | Cree |
| Gear Type | Led Driver |
| Input Voltage | 100-240V |
| 50 Hz | Yes |
| 60 Hz | Yes |
| Power (Watts) | 3-6W |
| Power Factor | 0,5 |
| Constant Current | Yes |
| IP Rating | IP20 |
| Safety Class | Class II |
| Dimmable | No |
| Housing Material | Plastic |
| Output Terminal | Cable |
Опис
6W LED for window frame illumination,IP65.
Complete with non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific
standards.
