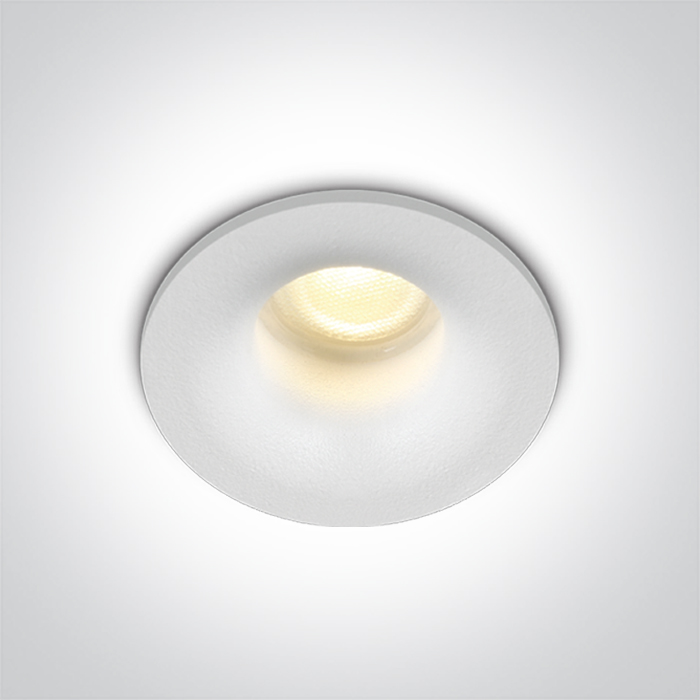

The Super Mini Series
| Physical Specification | |
|---|---|
| Product Type | Gear |
| Item Group | 02 Recessed Spots Fixed LED |
| Family | The Super Mini Series |
| Order Code | 10101LA/W/W |
| Colour | White |
| Material | Die Cast |
| Shape | Circular |
| Height | 36mm |
| Diameter | 34mm |
| Cutout Hole Diameter | 27mm |
| Recessed Ceiling | Yes |
| Depth Required | 55mm |
| Indoor | Yes |
| Adjustable | No |
| Electrical Characteristics | |
| Gear | Order Separately |
| Input Type | Constant Current |
| Input Current | 700mA |
| Voltage | 2,9V |
| Safety Class | Class III |
| Power (Watts) | 2W |
| IP Rating | IP44 |
| Light Source | LED built in |
| LED Type | COB |
| LED Brand | Philips |
| Cable Length | 200cm |
| Fast Connector | One Light 700 |
| F Mark | Yes |
Опис
2W COB LED recessed spot.
Requires 700mA driver. Driver cannot pass through the cut-out
hole.
Complies with standard EN60598-1 and any other specific
standards.
