The Retro Dark Light Range
| Physical Specification | |
|---|---|
| Product Type | Gear |
| Item Group | 02 Recessed Spots Fixed LED |
| Family | The Retro Dark Light Range |
| Order Code | 10120Z/W/W |
| Colour | White |
| Material | Die Cast + Plastic |
| Shape | Circular |
| Height | 85mm |
| Diameter | 118mm |
| Cutout Hole Diameter | 105mm |
| Recessed Ceiling | Yes |
| Depth Required | 105mm |
| Indoor | Yes |
| Adjustable | No |
| Electrical Characteristics | |
| Gear | External-Included |
| Input Voltage | 220-240V |
| 50 Hz | Yes |
| 60 Hz | Yes |
| Safety Class | Class II |
| Power (Watts) | 20W |
| IP Rating | IP20 |
| Light Source | LED built in |
| Dimmable | No |
| F Mark | Yes |
| Input Type | Constant Current |
| Input Current | 500mA |
| Voltage | 37,2V |
| Safety Class | Class III |
| Power (Watts) | 18,6W |
| IP Rating | IP20 |
| Light Source | LED built in |
| LED Type | COB |
| LED Brand | Cree |
| F Mark | Yes |
| Gear Type | Led Driver |
| Input Voltage | 220-240V |
| 50 Hz | Yes |
| 60 Hz | Yes |
| Power (Watts) | 12,5-20W |
| Power Factor | 0,5 |
| Constant Current | Yes |
| IP Rating | IP20 |
| Safety Class | Class II |
| Dimmable | No |
| Housing Material | Plastic |
| Output Terminal | Cable |
Опис

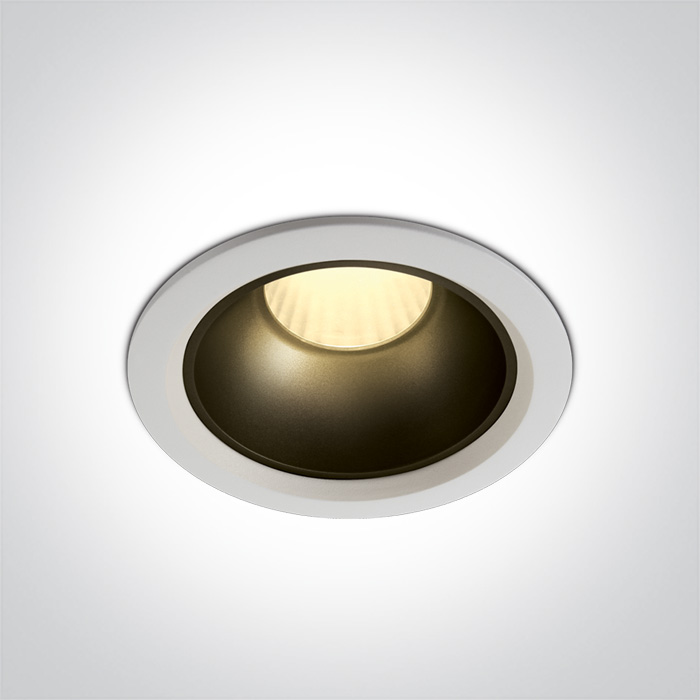

20W Recessed Dark Light LED spot with black and brass reflector, IP20.
Supplied with Black & Brass reflectors.
Complete with 500mA driver.
Complies with standard EN60598-1 and any other specific standards.
