The Mirror Dark Light Range
| Physical Specification | |
|---|---|
| Product Type | Gear |
| Item Group | 02 Recessed Spots Fixed LED |
| Family | The Mirror Dark Light Range |
| Order Code | 50110H/W/W |
| Colour | White |
| Material | Aluminium |
| Shape | Rectangular |
| Length | 75mm |
| Width | 75mm |
| Height | 42mm |
| Cutout Hole Width | 68mm |
| Cutout Hole Height | 68mm |
| Recessed Ceiling | Yes |
| Depth Required | 60mm |
| Indoor | Yes |
| Adjustable | No |
| Electrical Characteristics | |
| Gear | External-Included |
| Input Voltage | 220-240V |
| Safety Class | Class II |
| Power (Watts) | 10W |
| IP Rating | IP20 |
| Light Source | LED built in |
| Dimmable | No |
| Input Type | Constant Current |
| Input Current | 700mA |
| Voltage | 12V |
| Safety Class | Class III |
| Power (Watts) | 10W |
| IP Rating | IP20 |
| Light Source | LED built in |
| LED Type | SMD 3535 |
| LED Brand | Bridgelux |
| LED Number | 4 |
| F Mark | Yes |
| Gear Type | Led Driver |
| Input Voltage | 220-240V |
| 50 Hz | Yes |
| 60 Hz | Yes |
| Power (Watts) | 7,7-11,9W |
| Power Factor | 0,5 |
| Constant Current | Yes |
| IP Rating | IP20 |
| Safety Class | Class II |
| Dimmable | No |
| Ambient Temp | -20°C…+45°C |
| Operating Temp | 75°C |
Опис

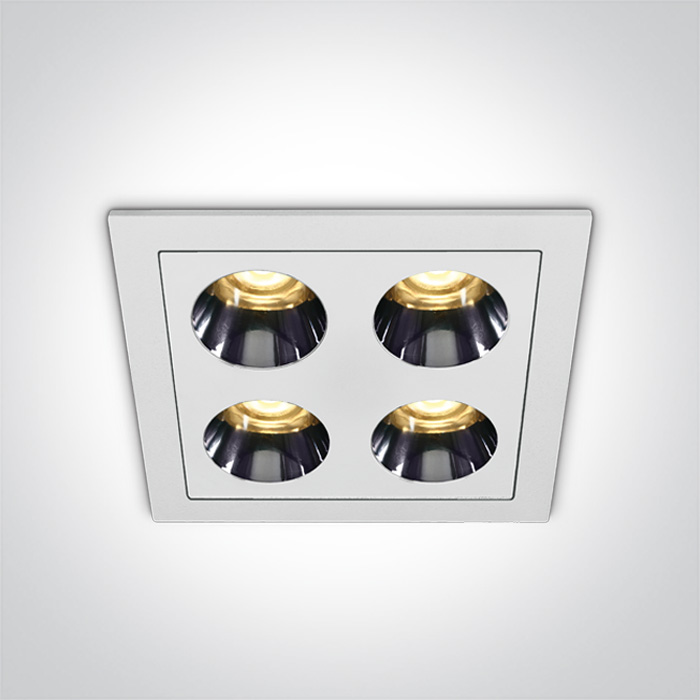

10W Dark light recessed spot, IP20.
Complete with 700mA driver.
Complies with standard EN60598-1 and any other specific standards.
