The Mirror Adjustable Boxes
| Physical Specification | |
|---|---|
| Product Type | Gear |
| Item Group | 04 Recessed Spots Adjustable LED |
| Family | The Mirror Adjustable Boxes |
| Order Code | 11107T/B/W |
| Colour | Black |
| Material | Aluminium |
| Shape | Circular |
| Height | 63mm |
| Diameter | 82mm |
| Cutout Hole Diameter | 74mm |
| Recessed Ceiling | Yes |
| Depth Required | 80mm |
| Indoor | Yes |
| Adjustable | 2 Directions |
| Electrical Characteristics | |
| Gear | External-Included |
| Input Voltage | 220-240V |
| 50 Hz | Yes |
| 60 Hz | Yes |
| Safety Class | Class II |
| Power (Watts) | 7W |
| IP Rating | IP20 |
| Light Source | LED built in |
| Dimmable | No |
| Input Type | Constant Current |
| Input Current | 160mA |
| Voltage | 40V |
| Safety Class | Class III |
| Power (Watts) | 6,4W |
| IP Rating | IP20 |
| Light Source | LED built in |
| LED Type | COB |
| LED Brand | Osram |
| LED Number | 1 |
| F Mark | Yes |
| Gear Type | Led Driver |
| Input Voltage | 220-240V |
| 50 Hz | Yes |
| 60 Hz | Yes |
| Power (Watts) | 4-6,72W |
| Power Factor | 0,5 |
| Constant Current | Yes |
| Voltage Range | 25-42V |
| Output | 160mA |
| IP Rating | IP20 |
| Safety Class | Class II |
| Dimmable | No |
| Ambient Temp | -20°C…+50°C |
| Operating Temp | 75°C |
Опис

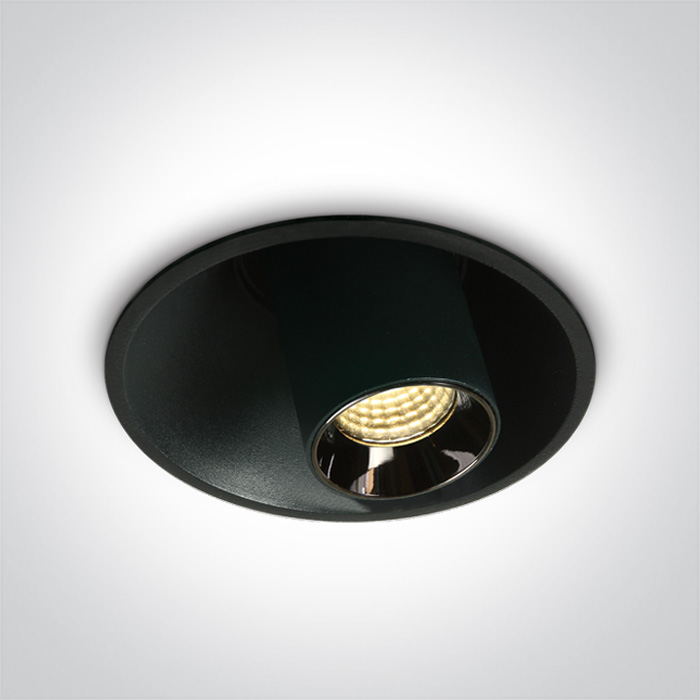

7W Adjustable Dark light recessed spot, IP20.
Complete with 160mA driver.
Complies with standard EN60598-1 and any other specific standards.
