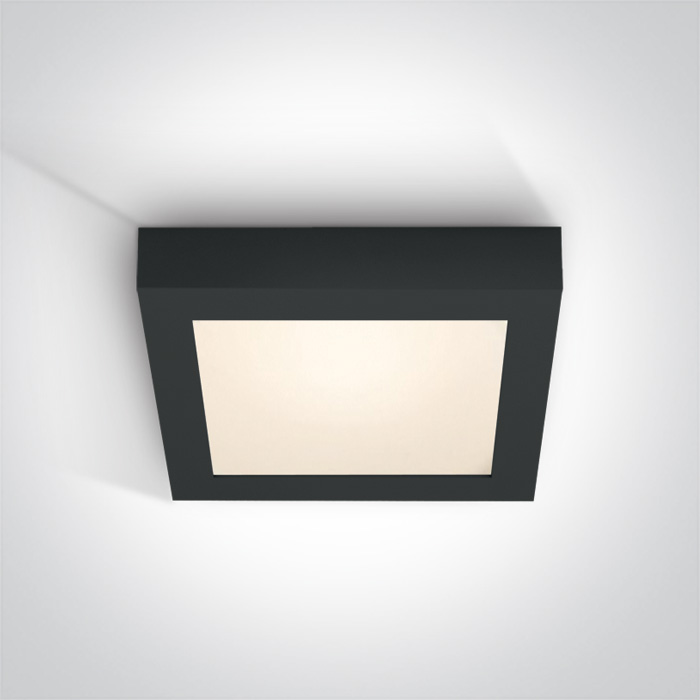

The LED Panel Plafo Square
| Physical Specification | |
|---|---|
| Product Type | Gear |
| Item Group | 13 Plafo |
| Family | The LED Panel Plafo Square |
| Order Code | 62122F/B/W |
| Colour | Black |
| Material | Die Cast |
| Shape | Rectangular |
| Length | 220mm |
| Width | 220mm |
| Height | 39mm |
| Surface Ceiling | Yes |
| Indoor | Yes |
| Adjustable | No |
| Electrical Characteristics | |
| Gear | External-Included |
| Input Voltage | 220-240V |
| 50 Hz | Yes |
| 60 Hz | Yes |
| Safety Class | Class II |
| Power (Watts) | 22W |
| IP Rating | IP40 |
| Light Source | LED built in |
| Dimmable | No |
| F Mark | Yes |
| Input Type | Constant Current |
| Input Current | 700mA |
| Voltage | 28V |
| Safety Class | Class III |
| Power (Watts) | 18,2W |
| IP Rating | IP40 |
| Light Source | LED built in |
| LED Type | SMD 2016 |
| LED Brand | Sanan |
| F Mark | Yes |
| Gear Type | Led Driver |
| Input Voltage | 220-240V |
| 50 Hz | Yes |
| 60 Hz | Yes |
| Power (Watts) | 12,6-21W |
| Power Factor | 0,9 |
| Constant Current | Yes |
| IP Rating | IP20 |
| Safety Class | Class II |
| Dimmable | No |
| Ambient Temp | 45°C |
| Operating Temp | 80°C |
| Housing Material | Plastic |
| Output Terminal | Cable |
Опис
22W LED slim plafo light, IP40, suitable for residential and
commercial application.
Complete with non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.
