The IP54 & IP65 Downlights CCT V
| Physical Specification | |
|---|---|
| Product Type | Gear |
| Item Group | 05 Downlights Fixed |
| Family | The IP54 & IP65 Downlights CCT V |
| Order Code | 10110BX/B/V |
| Colour | Black |
| Material | Aluminium |
| Shape | Circular |
| Height | 50mm |
| Diameter | 86mm |
| Cutout Hole Diameter | 75mm |
| Recessed Ceiling | Yes |
| Depth Required | 60mm |
| Indoor | Yes |
| Outdoor | Yes |
| Adjustable | No |
| Electrical Characteristics | |
| Gear | External-Included |
| Input Voltage | 220-240V |
| 50 Hz | Yes |
| 60 Hz | Yes |
| Safety Class | Class II |
| Power (Watts) | 10W |
| IP Rating | IP54 |
| Light Source | LED built in |
| F Mark | Yes |
| Input Type | Constant Current |
| Input Current | 250mA |
| Light Source | LED built in |
| LED Type | SMD |
| Gear Type | Led Driver |
| Input Voltage | 220-240V |
| 50 Hz | Yes |
| 60 Hz | Yes |
| Output | 250mA |
Опис

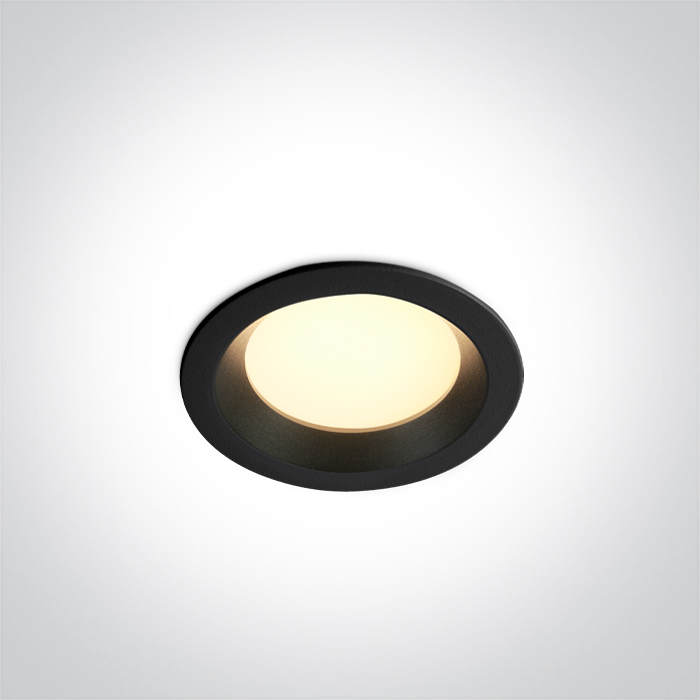

10W CCT Variable SMD recessed downlight.
Complete with non-dimmable driver.
Complies with standard EN60598-1 and any other specific
standards.
