The High Power IP65 LED Range
| Physical Specification | |
|---|---|
| Product Type | Gear |
| Item Group | 20 Industrial & Floodlights |
| Family | The High Power IP65 LED Range |
| Order Code | 38118M/C |
| Colour | Grey |
| Material | PC |
| Diffuser Material | PC |
| Shape | Rectangular |
| Length | 615mm |
| Width | 84mm |
| Height | 80mm |
| Surface Ceiling | Yes |
| Surface Wall | Yes |
| Indoor | Yes |
| Outdoor | Yes |
| Adjustable | No |
| IK Rating | 8 |
| Electrical Characteristics | |
| Gear | Built In |
| Input Voltage | 220-240V |
| 50 Hz | Yes |
| 60 Hz | Yes |
| Safety Class | Class I |
| Power (Watts) | 15W |
| IP Rating | IP65 |
| Light Source | LED built in |
| Dimmable | No |
| F Mark | Yes |
| Input Type | Constant Current |
| Input Current | 400mA |
| Voltage | 36V |
| Power (Watts) | 14,4W |
| IP Rating | IP65 |
| Light Source | LED built in |
| LED Type | SMD 2835 |
| LED Brand | Everlight |
| LED Number | 54 |
| Gear Type | Led Driver |
| Input Voltage | 220-240V |
| 50 Hz | Yes |
| 60 Hz | Yes |
| Power (Watts) | 9,45-14W |
| Power Factor | 0,9 |
| Constant Current | Yes |
| IP Rating | IP20 |
| Safety Class | Class II |
| Dimmable | No |
| Housing Material | Plastic |
| Output Terminal | Connector |
Опис

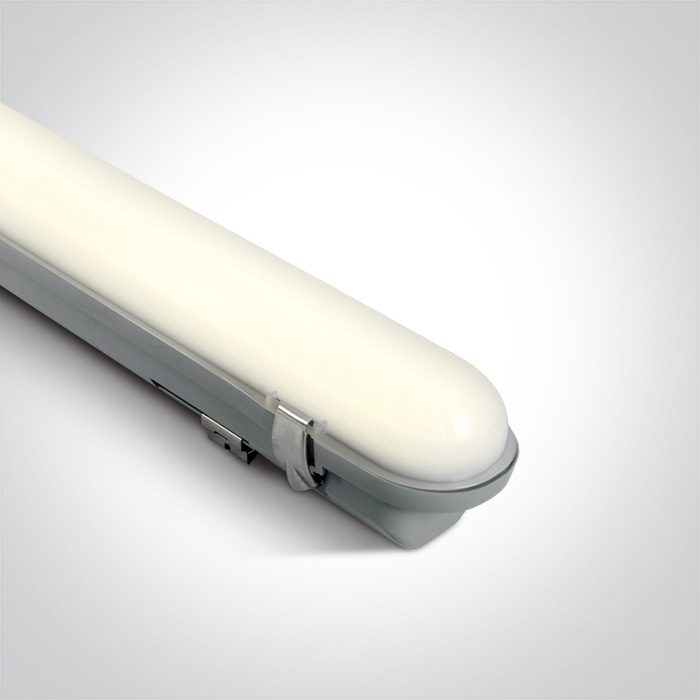

IP65 LED fitting to replace T8 IP65 traditional waterproof
fluorescent. Stainless steel clips included.
Polycarbonate body and diffuser.
Supplied with non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific
standards.
