The Dark Light Inground Range 230V
| Physical Specification | |
|---|---|
| Product Type | Gear |
| Item Group | 18 Wall Recessed & Inground |
| Family | The Dark Light Inground Range 230V |
| Order Code | 69070C/W |
| Colour | Stainless Steel |
| Material | Die Cast |
| Shape | Circular |
| Height | 125mm |
| Diameter | 180mm |
| Cutout Hole Diameter | 165mm |
| Inground | Yes |
| Depth Required | 155mm+300mm drainage |
| Indoor | Yes |
| Outdoor | Yes |
| Adjustable | No |
| IK Rating | 10 |
| Electrical Characteristics | |
| Gear | Built In |
| Input Voltage | 220-240V |
| 50 Hz | Yes |
| 60 Hz | Yes |
| Safety Class | Class I |
| Power (Watts) | 15W |
| IP Rating | IP67 |
| Light Source | LED built in |
| Dimmable | No |
| Cable Length | 200cm |
| F Mark | Yes |
| Input Type | Constant Current |
| Light Source | LED built in |
| LED Type | COB |
| LED Brand | Cree |
| Gear Type | Led Driver |
| Input Voltage | 220-240V |
| 50 Hz | Yes |
| 60 Hz | Yes |
| Power Factor | 0,9 |
| Constant Current | Yes |
| Dimmable | No |
| Housing Material | Plastic |
| Output Terminal | Connector |
Опис

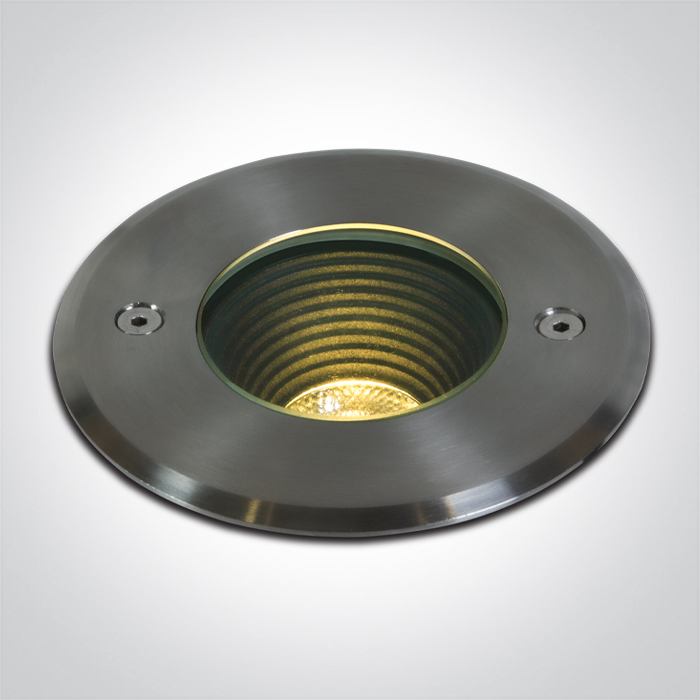

15W COB LED inground uplighter. IP67, stainless steel 316L and die cast aluminium body.
Supplied with non-dimmable LED driver and box for concrete installation.
Complies with standard EN60598-1 and any other specific
standards.
