The COB Downlight Range CCT V
| Physical Specification | |
|---|---|
| Product Type | Gear |
| Item Group | 05 Downlights Fixed |
| Family | The COB Downlight Range CCT V |
| Order Code | 10120CB/W/V |
| Colour | White |
| Material | Aluminium |
| Shape | Circular |
| Height | 85mm |
| Diameter | 195mm |
| Cutout Hole Diameter | 180mm |
| Recessed Ceiling | Yes |
| Depth Required | 110mm |
| Indoor | Yes |
| Adjustable | No |
| Electrical Characteristics | |
| Gear | External-Included |
| Input Voltage | 220-240V |
| 50 Hz | Yes |
| 60 Hz | Yes |
| Safety Class | Class II |
| Power (Watts) | 20W |
| IP Rating | IP20 |
| Light Source | LED built in |
| Dimmable | No |
| F Mark | Yes |
| Input Type | Constant Current |
| Input Current | 500mA |
| Light Source | LED built in |
| LED Type | COB |
| Gear Type | Led Driver |
| Input Voltage | 220-240V |
| 50 Hz | Yes |
| 60 Hz | Yes |
| Output | 500mA |
Опис

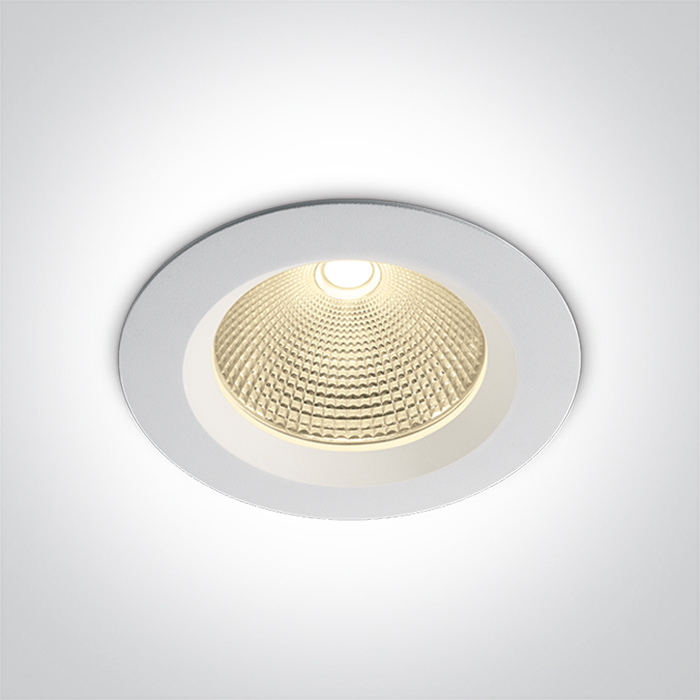

20W CCT Variable LED recessed downlight, IP20.
Complete with non-dimmable driver.
Complies with standard EN60598-1 and any other specific
standards.
