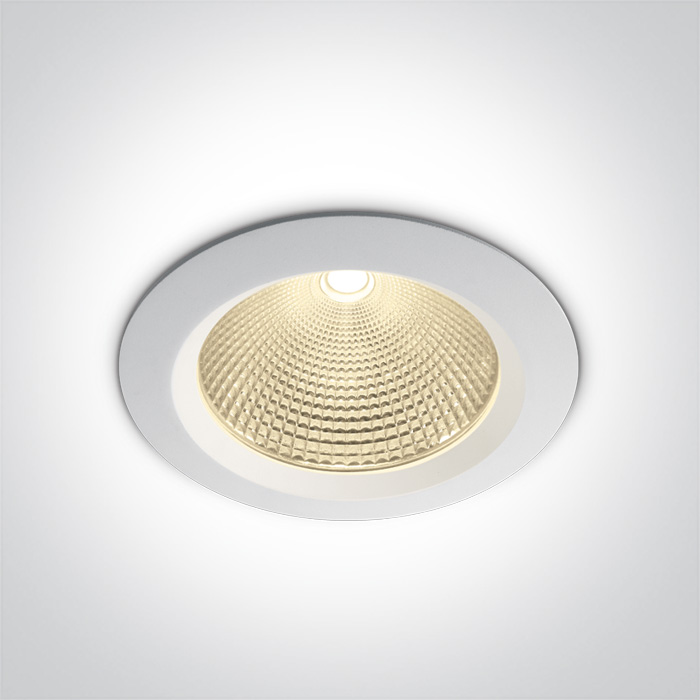

The COB Downlight Range Aluminium
| Physical Specification | |
|---|---|
| Product Type | Gear |
| Item Group | 05 Downlights Fixed |
| Family | The COB Downlight Range Aluminium |
| Order Code | 10160CA/W/W |
| Colour | White |
| Material | Die Cast |
| Shape | Circular |
| Height | 120mm |
| Diameter | 230mm |
| Cutout Hole Diameter | 210mm |
| Recessed Ceiling | Yes |
| Depth Required | 160mm |
| Indoor | Yes |
| Adjustable | No |
| Electrical Characteristics | |
| Gear | External-Included |
| Input Voltage | 220-240V |
| 50 Hz | Yes |
| 60 Hz | Yes |
| Safety Class | Class II |
| Power (Watts) | 60W |
| IP Rating | IP20 |
| Light Source | LED built in |
| Dimmable | No |
| F Mark | Yes |
| Input Type | Constant Current |
| Input Current | 1500mA |
| Voltage | 35,4V |
| Safety Class | Class III |
| Power (Watts) | 58,6W |
| IP Rating | IP20 |
| Light Source | LED built in |
| LED Type | COB |
| LED Brand | Epistar |
| F Mark | Yes |
| Gear Type | Led Driver |
| Input Voltage | 220-240V |
| 50 Hz | Yes |
| 60 Hz | Yes |
| Power (Watts) | 37,5-63W |
| Power Factor | 0,9 |
| Constant Current | Yes |
| IP Rating | IP20 |
| Safety Class | Class II |
| Dimmable | No |
| Ambient Temp | 45°C |
| Operating Temp | 85°C |
| Housing Material | Plastic |
| Output Terminal | Cable |
Опис
60W LED recessed downlight, IP20. Ideal for general lighting applications.
Complete with 1500mA driver.
Complies with standard EN60598-1 and any other specific
standards.
