The COB Box Type Shop Range
| Physical Specification | |
|---|---|
| Product Type | Gear |
| Item Group | 06 Downlights Adjustable |
| Family | The COB Box Type Shop Range |
| Order Code | 51130/B/C |
| Colour | Black |
| Material | Aluminium |
| Shape | Rectangular |
| Length | 185mm |
| Width | 185mm |
| Height | 105mm |
| Cutout Hole Width | 160mm |
| Cutout Hole Height | 160mm |
| Recessed Ceiling | Yes |
| Depth Required | 125mm |
| Indoor | Yes |
| Adjustable | 2 Directions |
| Electrical Characteristics | |
| Gear | External-Included |
| Input Voltage | 220-240V |
| 50 Hz | Yes |
| 60 Hz | Yes |
| Safety Class | Class II |
| Power (Watts) | 30W |
| IP Rating | IP20 |
| Light Source | LED built in |
| Dimmable | No |
| F Mark | Yes |
| Input Type | Constant Current |
| Input Current | 750mA |
| Voltage | 35,5V |
| Safety Class | Class III |
| Power (Watts) | 27W |
| IP Rating | IP20 |
| Light Source | LED built in |
| LED Type | COB |
| LED Brand | Sanan |
| Gear Type | Led Driver |
| Input Voltage | 220-240V |
| 50 Hz | Yes |
| 60 Hz | Yes |
| Power (Watts) | 24,75-30W |
| Power Factor | 0,9 |
| Constant Current | Yes |
| IP Rating | IP20 |
| Safety Class | Class II |
| Dimmable | No |
| Housing Material | Plastic |
Опис

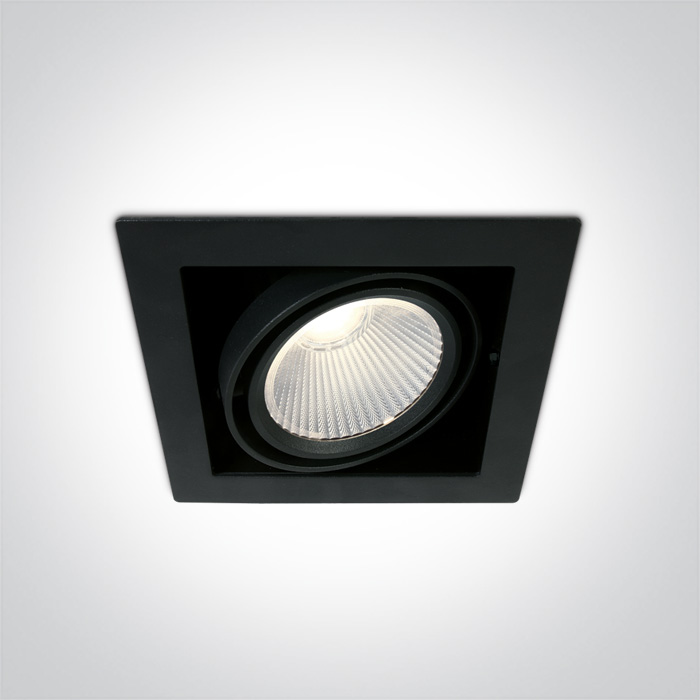

30W COB LED Recessed adjustable downlight, COB square range, IP20.
Complete with non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific
standards.
