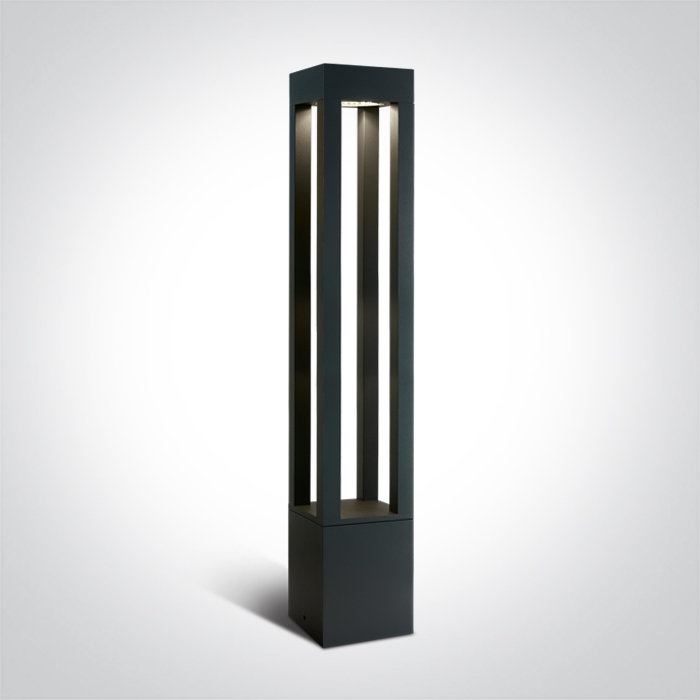

The Cage Light Bollards Aluminium
| Physical Specification | |
|---|---|
| Product Type | Gear |
| Item Group | 19 Garden & Underwater |
| Family | The Cage Light Bollards Aluminium |
| Order Code | 67504A/AN/C |
| Colour | Anthracite |
| Material | Die Cast |
| Shape | Rectangular |
| Length | 160mm |
| Width | 160mm |
| Height | 900mm |
| Surface Floor/Ground | Yes |
| Outdoor | Yes |
| Adjustable | No |
| IK Rating | 10 |
| Electrical Characteristics | |
| Gear | Built In |
| Input Voltage | 220-240V |
| 50 Hz | Yes |
| 60 Hz | Yes |
| Safety Class | Class I |
| Power (Watts) | 22W |
| IP Rating | IP65 |
| Light Source | LED built in |
| Dimmable | No |
| F Mark | Yes |
| Input Type | Constant Current |
| Input Current | 500mA |
| Voltage | 39,31V |
| Power (Watts) | 19,66W |
| IP Rating | IP65 |
| Light Source | LED built in |
| LED Type | SMD 2835 |
| LED Brand | Edison |
| Gear Type | Led Driver |
| Input Voltage | 220-240V |
| 50 Hz | Yes |
| 60 Hz | Yes |
| Power (Watts) | 13,5-20W |
| Power Factor | 0,9 |
| Constant Current | Yes |
| IP Rating | IP20 |
| Safety Class | Class II |
| Dimmable | No |
| Ambient Temp | 55°C |
| Operating Temp | 85°C |
| Housing Material | Plastic |
| Output Terminal | Connector |
Опис
22W LED Bollard, IP65 for Garden illumination.
Complete with non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific
standards.
