The 7W COB Range
| Physical Specification | |
|---|---|
| Product Type | Gear |
| Item Group | 04 Recessed Spots Adjustable LED |
| Family | The 7W COB Range |
| Order Code | 11107B/W/C |
| Colour | White |
| Material | Die Cast |
| Shape | Circular |
| Height | 55mm |
| Diameter | 90mm |
| Cutout Hole Diameter | 75mm |
| Recessed Ceiling | Yes |
| Depth Required | 75mm |
| Indoor | Yes |
| Adjustable | 1 Direction |
| Electrical Characteristics | |
| Gear | External-Included |
| Input Voltage | 220-240V |
| 50 Hz | Yes |
| 60 Hz | Yes |
| Safety Class | Class II |
| Power (Watts) | 7W |
| IP Rating | IP20 |
| Light Source | LED built in |
| Dimmable | No |
| F Mark | Yes |
| Input Type | Constant Current |
| Input Current | 300mA |
| Voltage | 21V |
| Safety Class | Class III |
| Power (Watts) | 6,3W |
| IP Rating | IP20 |
| Light Source | LED built in |
| LED Type | COB |
| LED Brand | Epistar |
| LED Number | 1 |
| F Mark | Yes |
| Gear Type | Led Driver |
| Input Voltage | 220-240V |
| 50 Hz | Yes |
| 60 Hz | Yes |
| Power (Watts) | 4,2-7,2W |
| Power Factor | 0,5 |
| Constant Current | Yes |
| IP Rating | IP20 |
| Safety Class | Class II |
| Dimmable | No |
| Housing Material | Plastic |
| Output Terminal | Cable |
Опис

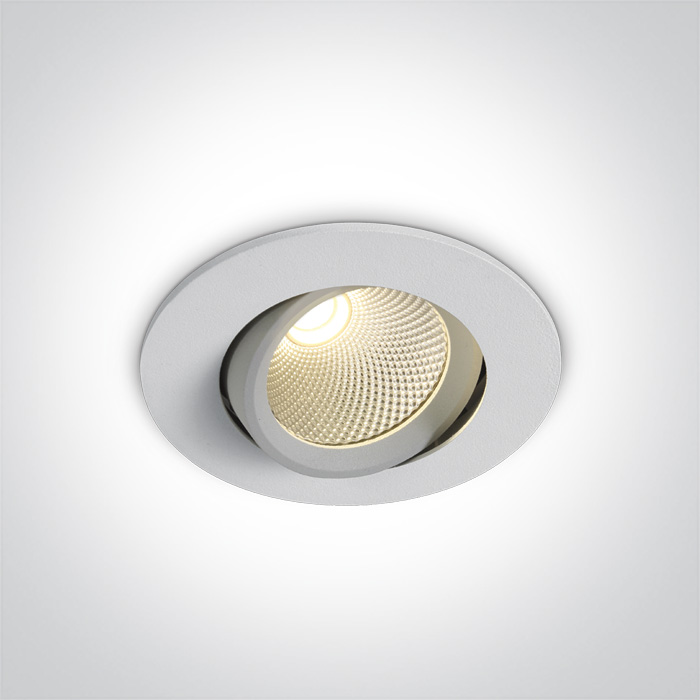

7W recessed adjustable spot LED. Suitable for residential
and commercial applications, IP20.
Supplied with non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific
standards.
