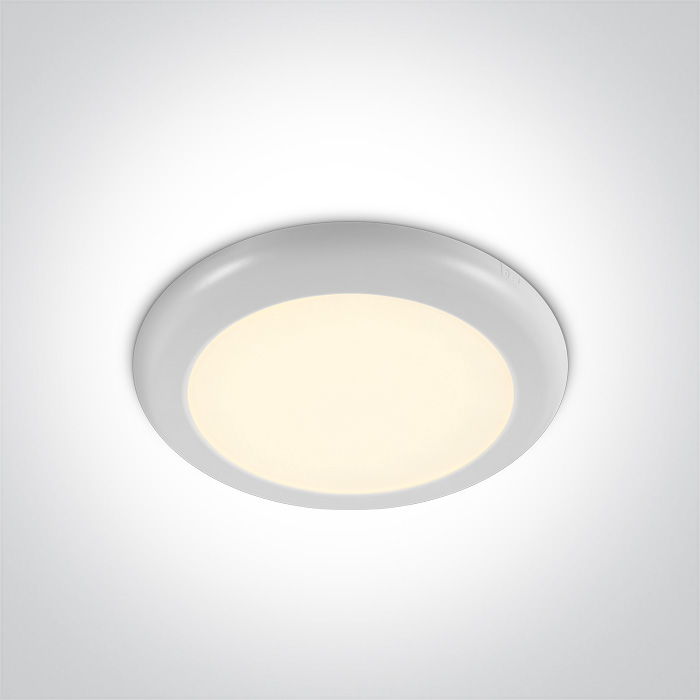

Surface/Recessed Panels Adjustable Cut Out Hole
| Physical Specification | |
|---|---|
| Product Type | Gear |
| Item Group | 05 Downlights Fixed |
| Family | Surface/Recessed Panels Adjustable Cut Out Hole |
| Order Code | 62116F/W/W |
| Colour | White |
| Material | Plastic |
| Shape | Circular |
| Height | 17mm |
| Diameter | 235mm |
| Cutout Hole Diameter | 70mm-175mm |
| Recessed Ceiling | Yes |
| Depth Required | 50mm |
| Indoor | Yes |
| Adjustable | No |
| Electrical Characteristics | |
| Gear | Built In |
| Input Voltage | 100-240V |
| 50 Hz | Yes |
| 60 Hz | Yes |
| Safety Class | Class II |
| Power (Watts) | 16W |
| IP Rating | IP20 |
| Light Source | LED built in |
| Dimmable | No |
| F Mark | Yes |
| Input Type | Constant Current |
| Input Current | 210mA |
| Voltage | 78V |
| Power (Watts) | 15,6W |
| IP Rating | IP20 |
| Light Source | LED built in |
| LED Type | SMD 2835 |
| LED Brand | Epistar |
| Gear Type | Led Driver |
| Input Voltage | 100-240V |
| 50 Hz | Yes |
| 60 Hz | Yes |
| Power (Watts) | 16W |
| Power Factor | 0,5 |
| Constant Current | Yes |
| Output | 210mA |
| IP Rating | IP20 |
| Safety Class | Class II |
| Dimmable | No |
| Output Terminal | Cable |
Опис
16W Downlight LED, IP20
Complete with 210mA driver.
Complies with standard EN60598-1 and any other specific standards.
