Street Lighting
| Physical Specification | |
|---|---|
| Product Type | Gear |
| Item Group | 20 Industrial & Floodlights |
| Family | Street Lighting |
| Order Code | 70114/B/W |
| Colour | Black |
| Material | Plastic |
| Shape | Rectangular |
| Length | 400mm |
| Width | 190mm |
| Height | 74mm |
| Surface Floor/Ground | Yes |
| Outdoor | Yes |
| Adjustable | No |
| IK Rating | 8 |
| Electrical Characteristics | |
| Gear | Built In |
| Input Voltage | 100-240V |
| 50 Hz | Yes |
| 60 Hz | Yes |
| Safety Class | Class I |
| Power (Watts) | 50W |
| IP Rating | IP66 |
| Light Source | LED built in |
| Dimmable | No |
| Cable Length | 200cm |
| F Mark | Yes |
| Input Type | Constant Current |
| Input Current | 950mA |
| Voltage | 50V |
| Power (Watts) | 47,5W |
| IP Rating | IP66 |
| Light Source | LED built in |
| LED Type | SMD 2835 |
| LED Brand | Smalite |
| LED Number | 64 |
| Gear Type | Led Driver |
| Input Voltage | 100-240V |
| 50 Hz | Yes |
| 60 Hz | Yes |
| Power (Watts) | 23,75-53,2W |
| Power Factor | 0,9 |
| Constant Current | Yes |
| IP Rating | IP67 |
| Safety Class | Class I |
| Dimmable | No |
| Housing Material | Plastic |
| Output Terminal | Connector |
Опис

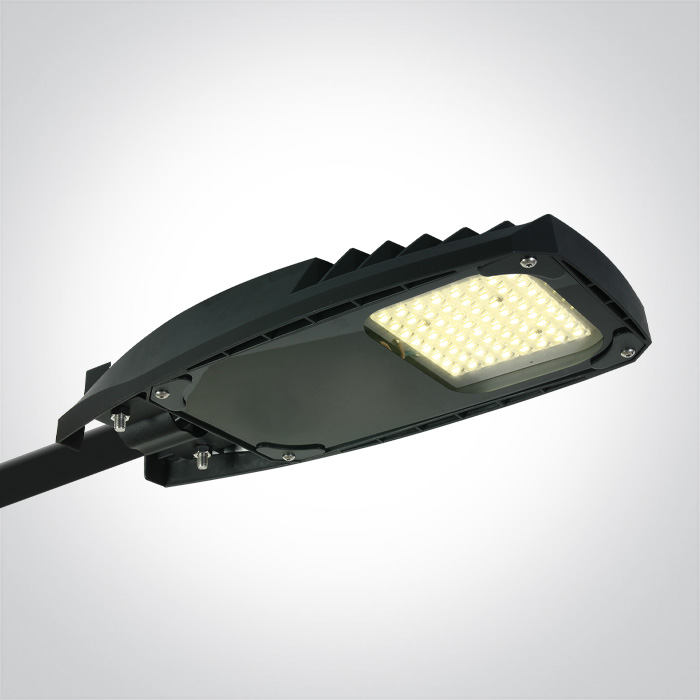

LED street light with SMD LED. High lumen output ideal for
replacement of old HPS and mercury street lighting fittings.
Post Diamerer 60mm.
Complete with 950mA driver.
Complies with standard EN60598-1 and any other specific
standards.
