LED Downlights
| Physical Specification | |
|---|---|
| Product Type | Gear |
| Item Group | 05 Downlights Fixed |
| Family | LED Downlights |
| Order Code | 50122D/W/C |
| Colour | White |
| Material | Die Cast |
| Shape | Rectangular |
| Length | 170mm |
| Width | 170mm |
| Height | 55mm |
| Cutout Hole Width | 160mm |
| Cutout Hole Height | 160mm |
| Recessed Ceiling | Yes |
| Depth Required | 75mm |
| Indoor | Yes |
| Adjustable | No |
| Electrical Characteristics | |
| Gear | External-Included |
| Input Voltage | 220-240V |
| 50 Hz | Yes |
| 60 Hz | Yes |
| Safety Class | Class II |
| Power (Watts) | 22W |
| IP Rating | IP20 |
| Light Source | LED built in |
| Dimmable | No |
| F Mark | Yes |
| Input Type | Constant Current |
| Input Current | 500mA |
| Voltage | 40V |
| Safety Class | Class III |
| Power (Watts) | 20W |
| IP Rating | IP20 |
| Light Source | LED built in |
| LED Type | SMD 2835 |
| LED Brand | Sanan |
| Gear Type | Led Driver |
| Input Voltage | 220-240V |
| 50 Hz | Yes |
| 60 Hz | Yes |
| Power (Watts) | 12,5-20W |
| Power Factor | 0,9 |
| Constant Current | Yes |
| IP Rating | IP20 |
| Safety Class | Class II |
| Dimmable | No |
| Ambient Temp | -30℃ ~ +50℃ |
| Housing Material | Plastic |
Опис

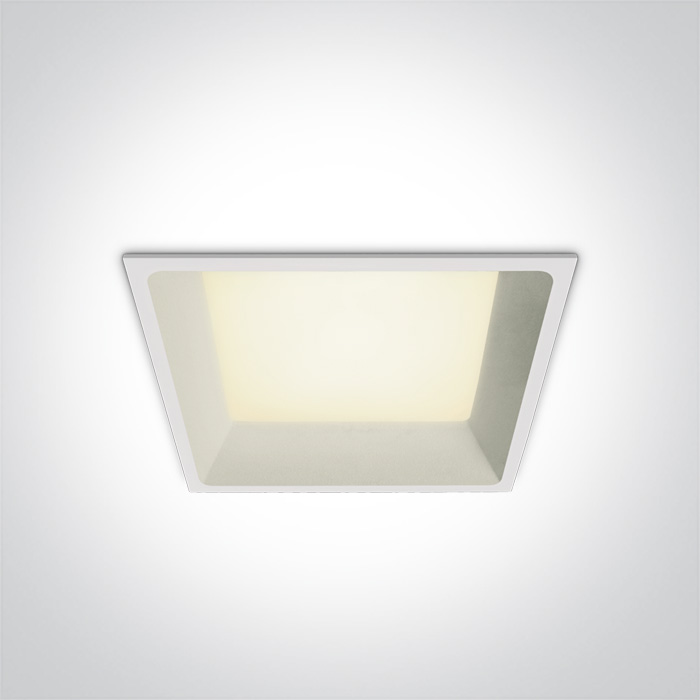

22W Dark Light LED Downlight .
Supplied with 500mA non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific
standards.
