LED Downlights
| Physical Specification | |
|---|---|
| Product Type | Gear |
| Item Group | 05 Downlights Fixed |
| Family | LED Downlights |
| Order Code | 50130B/W/C |
| Colour | White |
| Material | Aluminium |
| Shape | Rectangular |
| Length | 140mm |
| Width | 140mm |
| Height | 114mm |
| Cutout Hole Width | 130mm |
| Cutout Hole Height | 130mm |
| Recessed Ceiling | Yes |
| Depth Required | 120mm |
| Indoor | Yes |
| Adjustable | No |
| Electrical Characteristics | |
| Gear | External-Included |
| Input Voltage | 220-240V |
| 50 Hz | Yes |
| 60 Hz | Yes |
| Safety Class | Class II |
| Power (Watts) | 30W |
| IP Rating | IP20 |
| Light Source | LED built in |
| Dimmable | No |
| F Mark | Yes |
| Input Type | Constant Current |
| Input Current | 750mA |
| Voltage | 35,5V |
| Safety Class | Class III |
| Power (Watts) | 26,62W |
| IP Rating | IP20 |
| Light Source | LED built in |
| LED Type | COB |
| LED Brand | Sanan |
| Gear Type | Led Driver |
| Input Voltage | 220-240V |
| 50 Hz | Yes |
| 60 Hz | Yes |
| Power (Watts) | 25-30W |
| Power Factor | 0,9 |
| Constant Current | Yes |
| IP Rating | IP20 |
| Safety Class | Class II |
| Dimmable | No |
| Housing Material | Plastic |
Опис

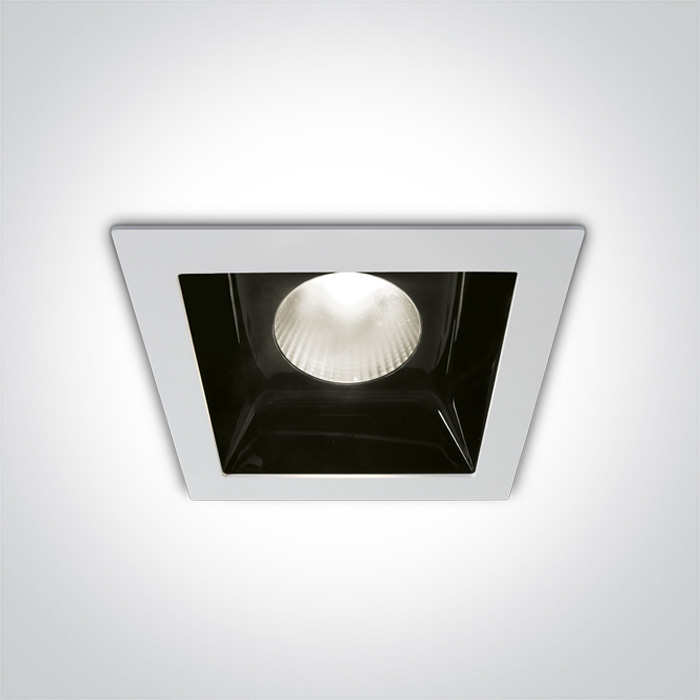

30W downlight LED, shop square boxes range IP20, ideal for commercial
applications such as offices, galleries and showrooms.
Supplied with 750mA non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific
standards.
