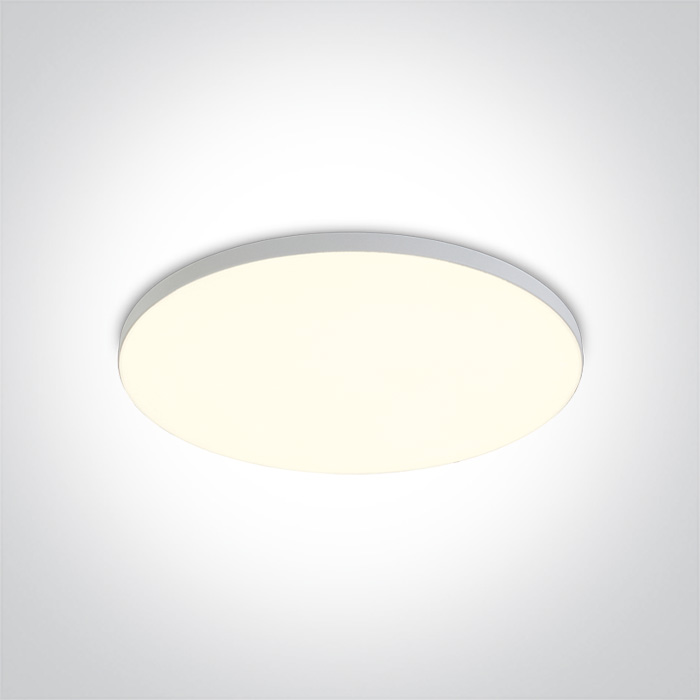

Floating Round Panels Range Adjustable Cut Out Hole
| Physical Specification | |
|---|---|
| Product Type | Gear |
| Item Group | 05 Downlights Fixed |
| Family | Floating Round Panels Range Adjustable Cut Out Hole |
| Order Code | 10120CE/C |
| Colour | White |
| Material | Aluminium |
| Diffuser Material | PC |
| Shape | Circular |
| Height | 10mm |
| Diameter | 200mm |
| Cutout Hole Diameter | 70mm-180mm |
| Recessed Ceiling | Yes |
| Depth Required | 40mm |
| Indoor | Yes |
| Adjustable | No |
| Electrical Characteristics | |
| Gear | External-Included |
| Input Voltage | 220-240V |
| 50 Hz | Yes |
| 60 Hz | Yes |
| Safety Class | Class II |
| Power (Watts) | 20W |
| IP Rating | IP20 |
| Light Source | LED built in |
| Dimmable | No |
| F Mark | Yes |
| Input Type | Constant Current |
| Input Current | 700mA |
| Voltage | 28V |
| Safety Class | Class III |
| Power (Watts) | 19,6W |
| IP Rating | IP20 |
| Light Source | LED built in |
| LED Type | SMD 4014 |
| LED Brand | Zhaochi |
| Gear Type | Led Driver |
| Input Voltage | 220-240V |
| 50 Hz | Yes |
| 60 Hz | Yes |
| Power (Watts) | 12,6-21W |
| Power Factor | 0,9 |
| Constant Current | Yes |
| IP Rating | IP20 |
| Safety Class | Class II |
| Dimmable | No |
| Housing Material | Plastic |
| Output Terminal | Cable |
Опис
20W Downlight LED, IP20
Complete with 700mA driver.
Complies with standard EN60598-1 and any other specific standards.
