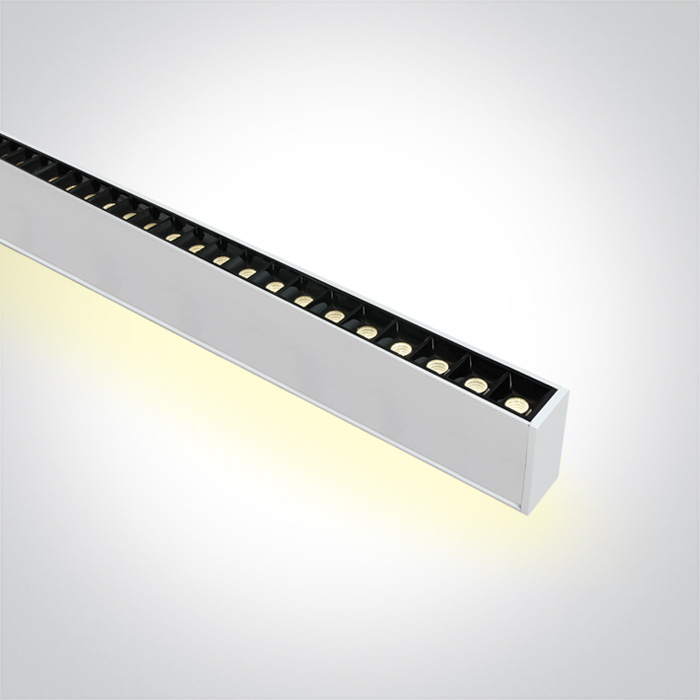

CCT V LED Linear Profiles Medium Size
| Physical Specification | |
|---|---|
| Product Type | Gear |
| Item Group | 10 Office & Kitchen |
| Family | CCT V LED Linear Profiles Medium Size |
| Order Code | 38150BU/W/V |
| Colour | White |
| Material | Aluminium |
| Shape | Rectangular |
| Length | 1300mm |
| Width | 35mm |
| Height | 70mm |
| Suspended Ceiling | Yes |
| Indoor | Yes |
| Adjustable | No |
| Electrical Characteristics | |
| Gear | Built In |
| Input Voltage | 220-240V |
| 50 Hz | Yes |
| 60 Hz | Yes |
| Safety Class | Class I |
| Power (Watts) | 20W-30W-40W + 16W-20W-25W |
| IP Rating | IP20 |
| Light Source | LED built in |
| Dimmable | No |
| Cable Length | 300cm |
| F Mark | Yes |
| Input Type | Constant Current |
| IP Rating | IP20 |
| Light Source | LED built in |
| LED Type | SMD |
| LED Number | 48 |
| Gear Type | Led Driver |
| Input Voltage | 220-240V |
| 50 Hz | Yes |
| 60 Hz | Yes |
| IP Rating | IP20 |
| Dimmable | No |
Опис
CCT and Power variable 40W UGR17 Linear system with with 48 LED spots and 25W uplight for suspended installation, ideal for offices.
Complete with 2 x power variable drivers.
Complies with standard EN60598-1 and any other specific standards.
