    Adjustable Constant Current DALI Dimmable DALI & Push to DIM

    Physical Specification
    Product Type Gear
    Item Group 22 Drivers
    Family Adjustable Constant Current DALI Dimmable DALI & Push to DIM
    Order Code 89015L
    Material Plastic
    Shape Rectangular
    Length 130mm
    Width 38mm
    Height 25mm
    Indoor Yes
    Electrical Characteristics
    Gear Type Led Driver
    Input Voltage 220-240V
    50 Hz Yes
    60 Hz Yes
    Power (Watts) Refer to Table
    Power Factor 0,95
    Constant Current Yes
    IP Rating IP20
    Safety Class Class II
    Dimmable Yes
    Dimmer type Dali, Push to Dim
    Ambient Temp 50°C
    Operating Temp 80°C
    Housing Material Plastic
    Fast Connector Yes
    Fast Connector Type One Light 350/500
    Артикул: 89015L Категорія:

    Опис

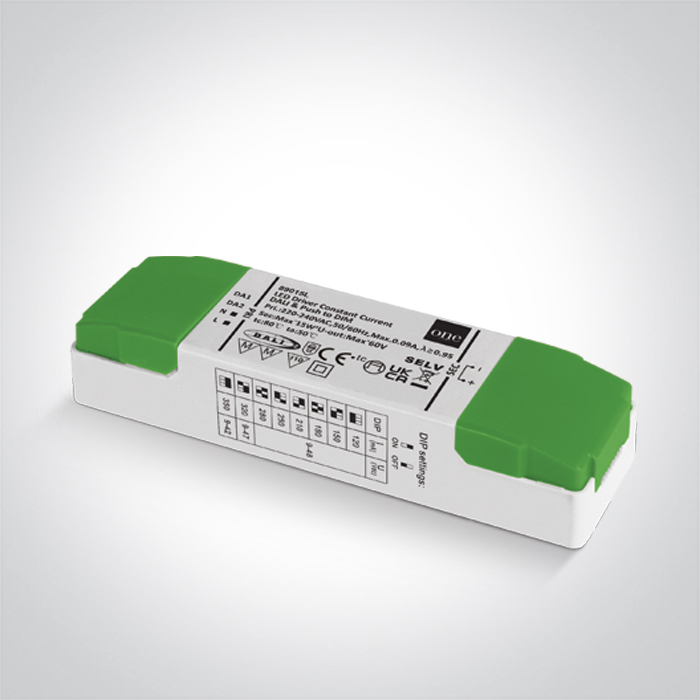

    DALI & Push to DIM constant current dimmable LED driver for LED spots / LED fittings.

    Adjustable output using DIP Switches. 120/150/180/210/250/280/320/350mA.

    Output:

    120/150/180/210/250/280mA 9-48V

    320mA 9-47V

    350mA 9-42V

    Complies with standard EN61347-1 and any other specific standards.
