    Adjustable Constant Current DALI Dimmable DALI & Push to DIM

    Physical Specification
    Product Type Gear
    Item Group 22 Drivers
    Family Adjustable Constant Current DALI Dimmable DALI & Push to DIM
    Order Code 89026AL
    Material Plastic
    Shape Rectangular
    Length 138mm
    Width 42mm
    Height 25mm
    Indoor Yes
    Electrical Characteristics
    Gear Type Led Driver
    Input Voltage 220-240V
    50 Hz Yes
    60 Hz Yes
    Power (Watts) Refer to Table
    Power Factor 0,95
    Constant Current Yes
    IP Rating IP20
    Safety Class Class II
    Dimmable Yes
    Dimmer type Dali, Push to Dim
    Ambient Temp 45°C
    Operating Temp 80°C
    Housing Material Plastic
    Fast Connector Yes
    Fast Connector Type One Light 350+700
    Артикул: 89026AL Категорія:

    Опис

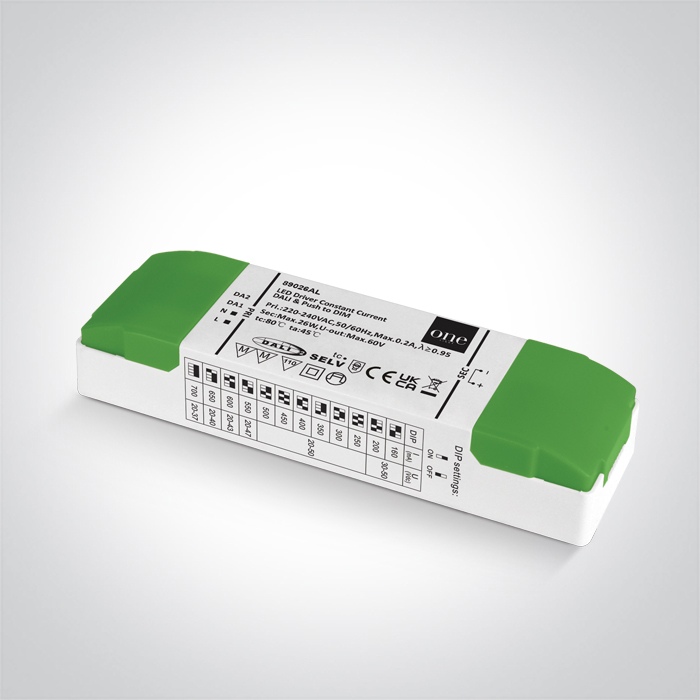

    DALI & Push to DIM constant current dimmable LED driver for LED spots / LED fittings.

    Adjustable output using DIP Switches.

    Output:

    160/200mA 30-50V

    250/300/350/400/450/500mA 20-50V

    550mA 20-47V

    600mA 20-43V

    650mA 20-40V

    700mA 20-37V

    Complies with standard EN61347-1 and any other specific standards.
